Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > BD95861MUV-EVK-101

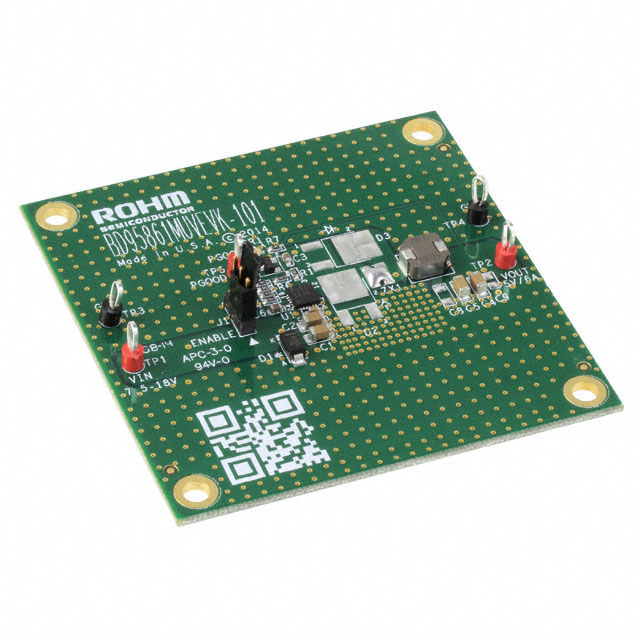

BD95861MUV-EVK-101

BD95861MUV-EVK-101

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BD95861MUV-EVK-101 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BD95861MUV-EVK-101
Manufacturer	LAPIS Semiconductor
Description	BOARD EVAL BD95861MUV REG
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1907 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$17.867

Product parameter
Data sheet

Product parameter

Part Number	BD95861MUV-EVK-101	Manufacturer	LAPIS Semiconductor
Description	BOARD EVAL BD95861MUV REG	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1907 pcs	Data sheet	BD95861MUV-EVK-101 BD95861MUV
Category	Development Boards, Kits, Programmers	Voltage - Output	0.8 V ~ 5.5 V
Voltage - Input	7.5 V ~ 18 V	Utilized IC / Part	BD95861
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	-	Detailed Description	BD95861 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	6A	Board Type	Fully Populated
