Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > BD95841MUVEVK-101

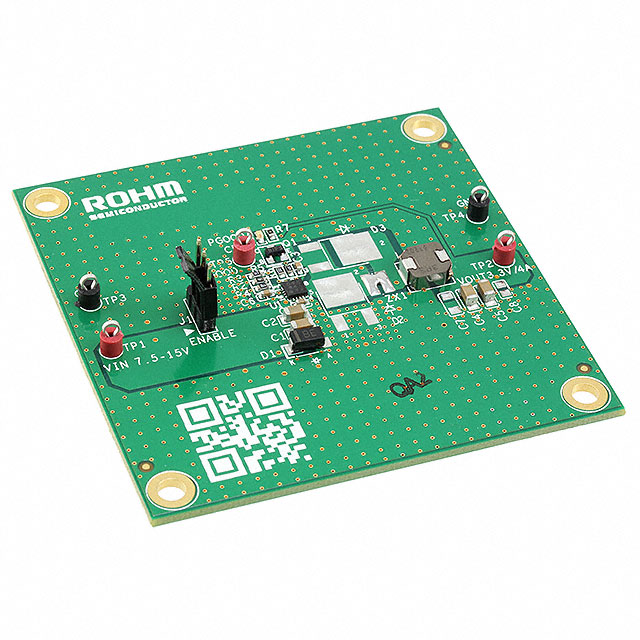

BD95841MUVEVK-101

BD95841MUVEVK-101

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BD95841MUVEVK-101 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BD95841MUVEVK-101
Manufacturer	LAPIS Semiconductor
Description	EVAL BOARD FOR BD95841
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2789 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$12.714

Product parameter
Data sheet

Product parameter

Part Number	BD95841MUVEVK-101	Manufacturer	LAPIS Semiconductor
Description	EVAL BOARD FOR BD95841	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2789 pcs	Data sheet	BD95841MUV
Category	Development Boards, Kits, Programmers	Voltage - Output	0.8 V ~ 5.5 V
Voltage - Input	7.5 V ~ 15 V	Utilized IC / Part	BD95841
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Other Names	BD95841MUV-EVK-101 BD95841MUV-EVK-101-ND	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	-	Detailed Description	BD95841 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	4A	Board Type	Fully Populated
