| Part Number | SM02B-NSHSS-TB(LF)(SN) |
|---|---|
| Manufacturer | JST |

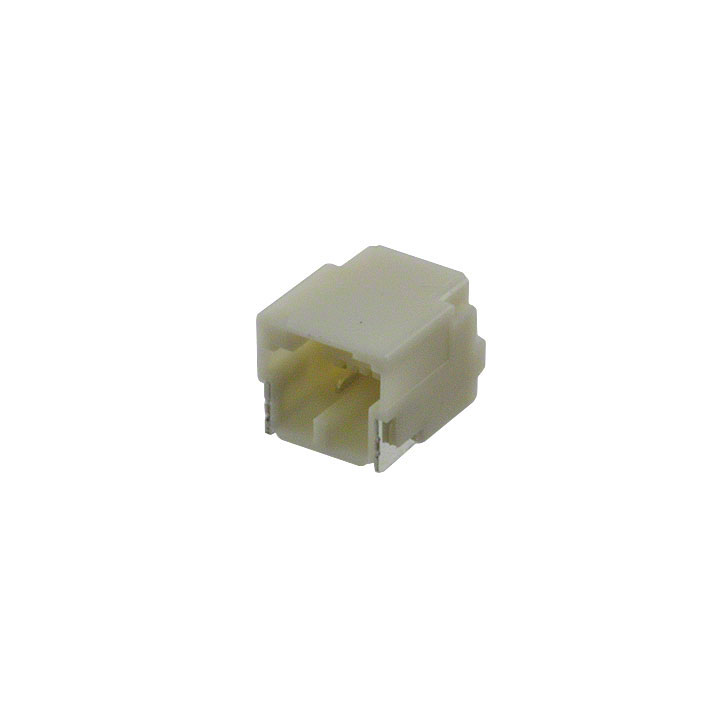

| Description | CONN HEADER 2 POS R/A SMD 1.0MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1500 pcs | 3000 pcs | 7500 pcs | 10500 pcs | 15000 pcs |
|---|---|---|---|---|---|
| $0.132 | $0.124 | $0.119 | $0.111 | $0.11 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | SM02B-NSHSS-TB(LF)(SN) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HEADER 2 POS R/A SMD 1.0MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 204420 pcs | Data sheet | NSH Connector Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | NSH |
| Row Spacing - Mating | - | Pitch - Mating | 0.039" (1.00mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 455-2776-2 SM02B-NSHSS-TB (LF)(SN) SM02BNSHSSTBLFSN |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.173" (4.40mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Surface Mount, Right Angle 2 position 0.039" (1.00mm) |
| Current Rating | 1A | Contact Type | Outer Shroud Contact |
| Contact Shape | - | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
