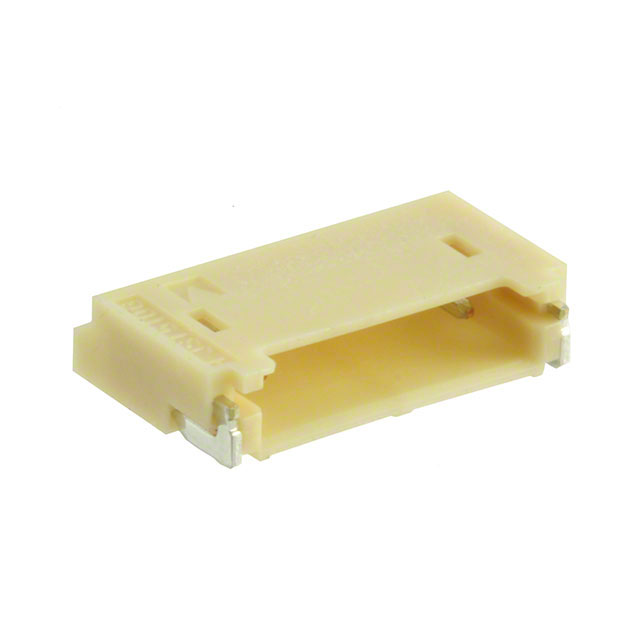

SM02(8.0)B-BHS-1-TB(LF)(SN)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SM02(8.0)B-BHS-1-TB(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SM02(8.0)B-BHS-1-TB(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SM02(8.0)B-BHS-1-TB(LF)(SN) |
|---|---|
| Manufacturer | JST |
| Description | CONN HDR 2POS 8MM R/A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 3000 pcs | ||
|---|---|---|---|---|---|
| $0.101 | $0.098 | $0.092 | |||
| 5000 pcs | 10000 pcs | 25000 pcs | |||
| $0.089 | $0.082 | $0.079 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SM02(8.0)B-BHS-1-TB(LF)(SN) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HDR 2POS 8MM R/A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 256018 pcs | Data sheet | BH Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 600V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | BH |
| Row Spacing - Mating | - | Pitch - Mating | 0.315" (8.00mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | (Q)SM02(8.0)B-BHS-1-TB(LF)(SN) 455-2962-2 Q4300888AAB SM02(8.0)B-BHS-1-TB(LF)(SN)-ND |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.126" (3.20mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Surface Mount, Right Angle 2 position 0.315" (8.00mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
