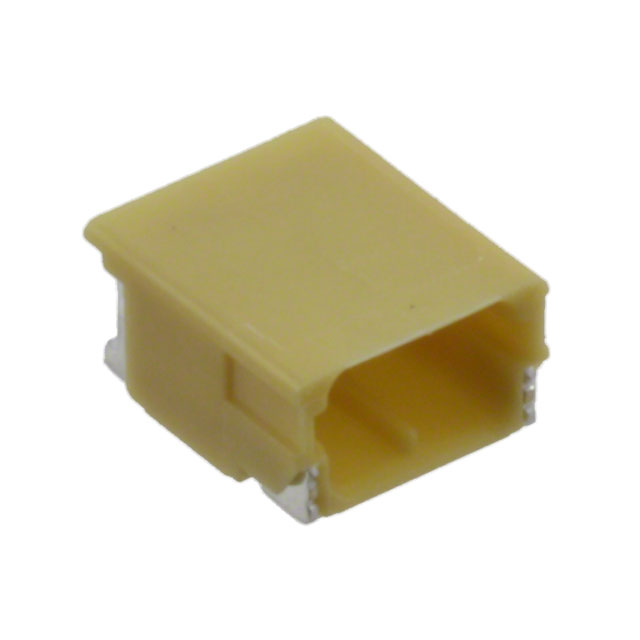

SM02B-SFHLS-TF(LF)(SN)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SM02B-SFHLS-TF(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SM02B-SFHLS-TF(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SM02B-SFHLS-TF(LF)(SN) |
|---|---|
| Manufacturer | JST |
| Description | CONN HDR 2POS 1.8MM R/A YLW |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 4000 pcs | 6000 pcs | 10000 pcs | 14000 pcs |
|---|---|---|---|---|---|
| $0.114 | $0.107 | $0.104 | $0.097 | $0.095 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | SM02B-SFHLS-TF(LF)(SN) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HDR 2POS 1.8MM R/A YLW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 236078 pcs | Data sheet | SFH Series |
| Category | Connectors, Interconnects | Voltage Rating | 350V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | SFH |
| Row Spacing - Mating | - | Pitch - Mating | 0.071" (1.80mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 455-2525-2 SM02B-SFHLS-TF (LF)(SN) SM02BSFHLSTFLFSN |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.118" (3.00mm) | Insulation Color | Yellow |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Surface Mount, Right Angle 2 position 0.071" (1.80mm) |
| Current Rating | 4A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
