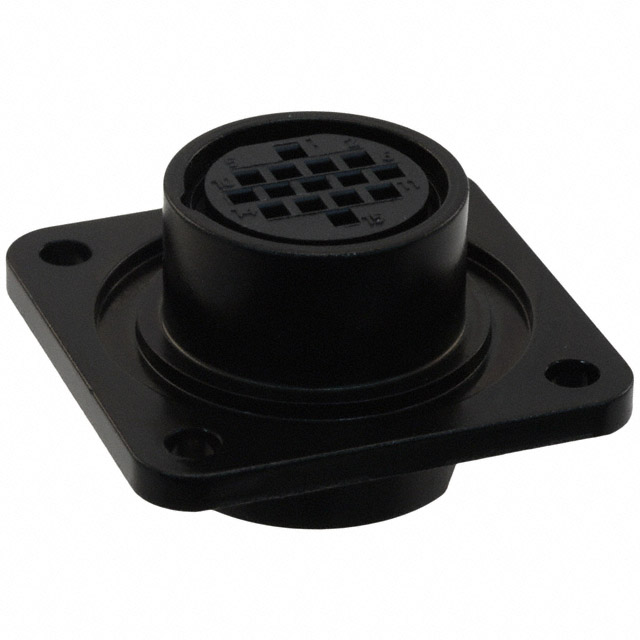

JN2AW15PL1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JN2AW15PL1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JN2AW15PL1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JN2AW15PL1 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN RCPT HSNG MALE 15POS PNL MT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 24 pcs | ||||
|---|---|---|---|---|---|
| $6.503 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JN2AW15PL1 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT HSNG MALE 15POS PNL MT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5778 pcs | Data sheet | Circular ConnectorsJN2AW15PL1 Drawing |
| Category | Connectors, Interconnects | Type | For Male Pins |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | W | Shell Material | Zinc Alloy |
| Shell Finish | Zinc | Series | JN2W |
| Packaging | Bulk | Other Names | 670-2424 JN2AW15PL1-ND |
| Orientation | N (Normal) | Operating Temperature | -20°C ~ 100°C |
| Number of Positions | 15 | Note | Contacts Not Included |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Synthetic Resin | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Includes | - | Housing Color | Black |
| Features | - | Fastening Type | Push-Twist |
| Detailed Description | 15 Position Circular Connector Receptacle Housing Panel Mount | Coupling Nut Material, Plating | - |
| Coupling Nut Diameter | - | Contact Type | Crimp |
| Contact Size | 22 | Contact Shape | Circular |
| Connector Type | Receptacle Housing |
