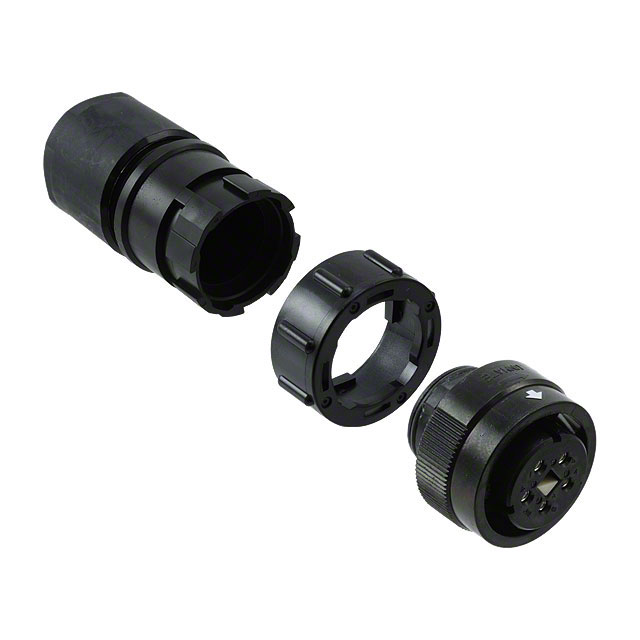

JN2DW05FH1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JN2DW05FH1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JN2DW05FH1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JN2DW05FH1 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN PLUG FMALE 5POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $15.073 | $13.606 | $13.036 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $12.221 | $11.814 | $11.162 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | JN2DW05FH1 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN PLUG FMALE 5POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2857 pcs | Data sheet | JN2yW05yyHy Spec SheetJN2DW05FHx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 400VAC |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | W |
| Shell Material | Zinc Alloy | Shell Finish | Zinc |
| Series | JN2W | Packaging | Bulk |
| Other Names | 670-2597 | Orientation | N (Normal) |
| Operating Temperature | -20°C ~ 100°C | Number of Positions | 5 (4 Power + PE) |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Synthetic Resin | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Backshell, Coupling Nut | Fastening Type | Push-Twist |
| Detailed Description | 5 (4 Power + PE) Position Circular Connector Plug, Female Sockets Solder Cup Silver | Current Rating | 13A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Silver | Connector Type | Plug, Female Sockets |
| Color | Black | Cable Opening | - |
| Backshell Material, Plating | Synthetic Resin | Applications | Industrial |
