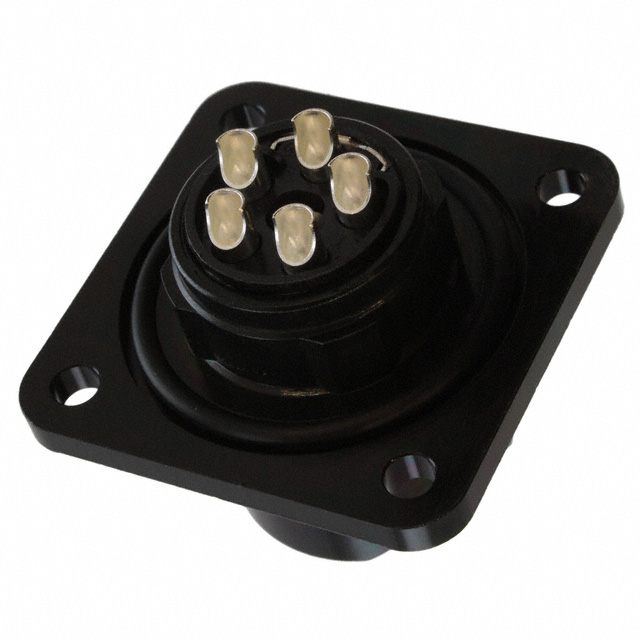

JN2AW05FH1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JN2AW05FH1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JN2AW05FH1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JN2AW05FH1 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN RCPT FMALE 5POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JN2AW05FH1 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT FMALE 5POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5129 pcs | Data sheet | JN2yW05yyHy Spec SheetJN2AW05FH1 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 400VAC |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | W |
| Shell Material | Zinc Alloy | Shell Finish | Zinc |
| Series | JN2W | Packaging | Bulk |
| Other Names | 670-2596 | Orientation | N (Normal) |
| Operating Temperature | -20°C ~ 100°C | Number of Positions | 5 (4 Power + PE) |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Synthetic Resin |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Features | Ground Lug |
| Fastening Type | Push-Twist | Detailed Description | 5 (4 Power + PE) Position Circular Connector Receptacle, Female Sockets Solder Cup Silver |
| Current Rating | 13A | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | - | Contact Finish - Mating | Silver |
| Connector Type | Receptacle, Female Sockets | Color | Black |
| Cable Opening | - | Backshell Material, Plating | - |
| Applications | Industrial |
