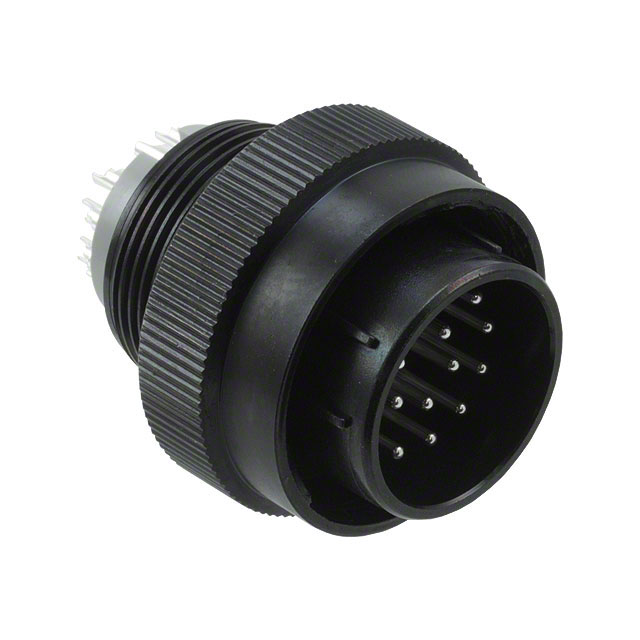

JL05-6A20-29P-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JL05-6A20-29P-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JL05-6A20-29P-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JL05-6A20-29P-R |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN PLUG MALE 17POS SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $18.423 | $17.341 | $16.799 | $15.715 | $14.848 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | JL05-6A20-29P-R | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN PLUG MALE 17POS SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2040 pcs | Data sheet | Circular ConnectorsJL05-6Axx-xx(P,PC,S,SC)-F0-R DrawingJL05(6,2)A Waterproof Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | 20-29 |
| Shell Material | Aluminum Alloy | Shell Finish | Zinc |
| Series | JL05 | Packaging | Bulk |
| Other Names | 670-2032 JL056A2029PR |
Orientation | N (Normal) |
| Operating Temperature | -55°C ~ 125°C | Number of Positions | 17 (16 + PE) |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Synthetic Resin | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Coupling Nut, Ground Lug | Fastening Type | Bayonet Lock |
| Detailed Description | 17 (16 + PE) Position Circular Connector Plug, Male Pins Solder Silver | Current Rating | 13A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Silver | Connector Type | Plug, Male Pins |
| Color | Black | Cable Opening | 1.059" (26.90mm) |
| Backshell Material, Plating | - | Applications | Industrial, Marine, Telecommunications |
