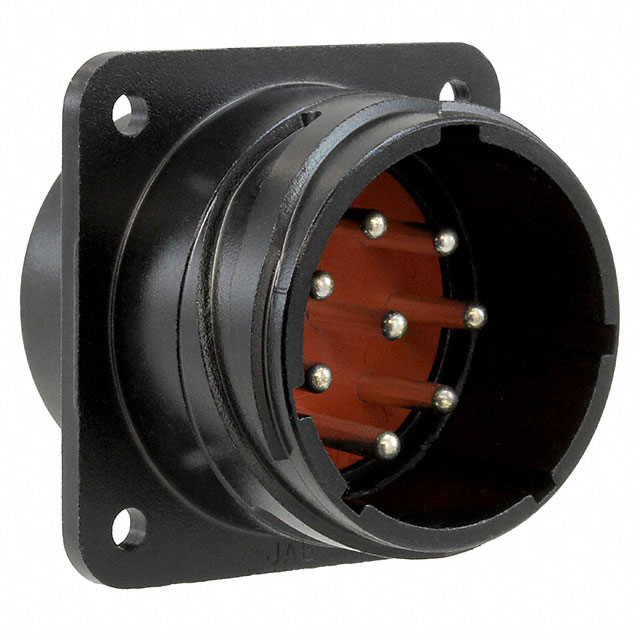

JL05-2L22-23P-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JL05-2L22-23P-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JL05-2L22-23P-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JL05-2L22-23P-R |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN RCPT MALE 8POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JL05-2L22-23P-R | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT MALE 8POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6024 pcs | Data sheet | Circular ConnectorsJL05(6,2)A Waterproof Series DatasheetJL05-2Lxx-xxPx-R Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | 22-23 |
| Shell Material | Aluminum Alloy | Shell Finish | Zinc |
| Series | JL05 | Packaging | Bulk |
| Other Names | 670-2245 JL052L2223PR |
Orientation | N (Normal) |
| Operating Temperature | -55°C ~ 125°C | Number of Positions | 8 (7 + PE) |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Synthetic Rubber |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Features | Ground |
| Fastening Type | Bayonet Lock | Detailed Description | 8 (7 + PE) Position Circular Connector Receptacle, Male Pins Solder Cup Silver |
| Current Rating | 23A | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | - | Contact Finish - Mating | Silver |
| Connector Type | Receptacle, Male Pins | Color | Black |
| Cable Opening | 1.252" (31.80mm) | Backshell Material, Plating | - |
| Applications | Industrial, Marine, Telecommunications |
