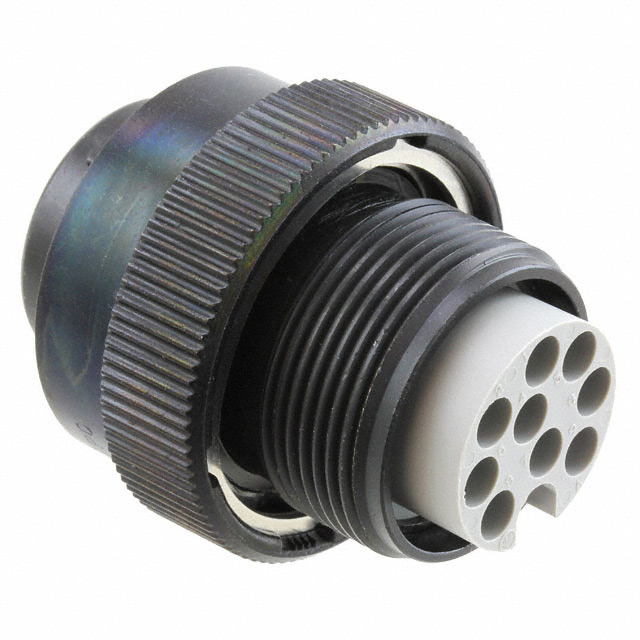

JL05-6A18-1PC-F0-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JL05-6A18-1PC-F0-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JL05-6A18-1PC-F0-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JL05-6A18-1PC-F0-R |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN PLG HSG MALE 10POS INLINE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 22 pcs | ||||
|---|---|---|---|---|---|
| $7.033 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JL05-6A18-1PC-F0-R | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN PLG HSG MALE 10POS INLINE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5192 pcs | Data sheet | Circular ConnectorsJL05-6Axx-xx(P,PC,S,SC)-F0-R DrawingJL05(6,2)A Waterproof Series Datasheet |
| Category | Connectors, Interconnects | Type | For Male Pins |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 18-1 | Shell Material | Aluminum Alloy |
| Shell Finish | Zinc | Series | JL05 |
| Packaging | Bulk | Other Names | 670-2031 JL056A181PCF0R |
| Orientation | N (Normal) | Operating Temperature | -55°C ~ 125°C |
| Number of Positions | 10 (9 + PE) | Note | Contacts Not Included |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Synthetic Resin | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Includes | - | Housing Color | Black |
| Features | Coupling Nut | Fastening Type | Bayonet Lock |
| Detailed Description | 10 (9 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut | Coupling Nut Material, Plating | Aluminum Alloy, Zinc |
| Coupling Nut Diameter | 1.413" (35.90mm) | Contact Type | Crimp |
| Contact Size | 16 | Contact Shape | Circular |
| Connector Type | Plug Housing |
