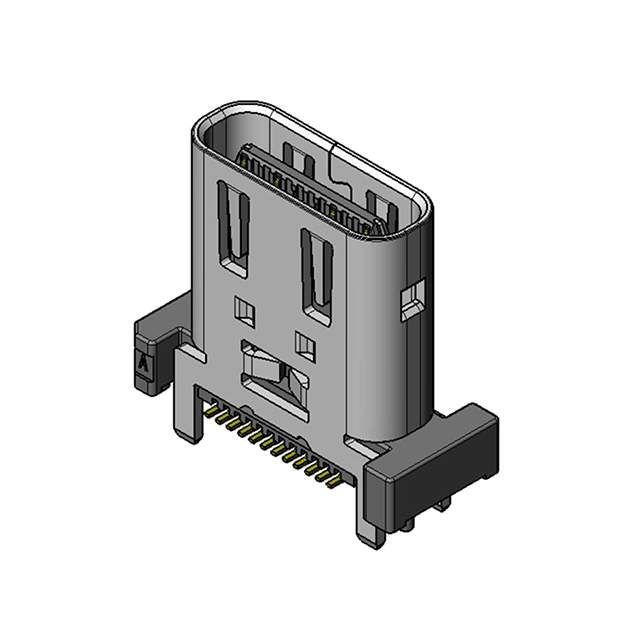

DX07S024WJ3R400
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DX07S024WJ3R400 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DX07S024WJ3R400 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DX07S024WJ3R400 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN RCPT USB3.1 TYPEC SMD VERT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.815 | $0.739 | $0.694 | $0.663 | $0.633 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | DX07S024WJ3R400 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT USB3.1 TYPEC SMD VERT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 50768 pcs | Data sheet | DX07 Series DatasheetDX07S024WJ3R400 Pkg DrawingDX07S024WJ3 Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | 20V |
| Termination | Solder | Specifications | USB 3.1 (USB 3.1 Gen 2, Superspeed+) |
| Shielding | Unshielded | Series | DX07 |
| Packaging | Original-Reel® | Other Names | 670-2950-6 |
| Operating Temperature | -30°C ~ 80°C | Number of Ports | 1 |
| Number of Contacts | 24 | Mounting Type | Surface Mount |
| Mounting Feature | Vertical | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 10000 | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | Black | Ingress Protection | - |
| Gender | Receptacle | Features | Board Guide |
| Detailed Description | USB - C USB 3.1 (USB 3.1 Gen 2, Superspeed+) Receptacle Connector 24 Position Surface Mount | Current Rating | 5A |
| Connector Type | USB - C |
