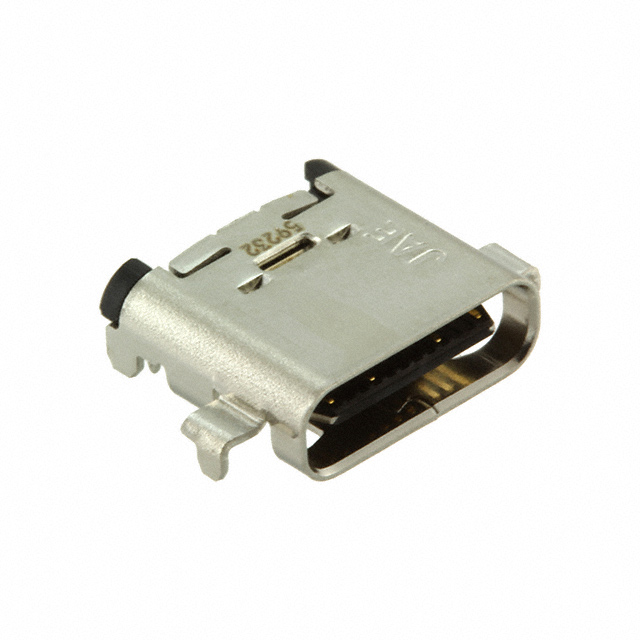

DX07B024JJ2R1500
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DX07B024JJ2R1500 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DX07B024JJ2R1500 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DX07B024JJ2R1500 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN RCPT USB3.1 TYPEC BRD EDGE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1500 pcs | 3000 pcs | 7500 pcs | ||
|---|---|---|---|---|---|
| $0.433 | $0.418 | $0.397 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | DX07B024JJ2R1500 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT USB3.1 TYPEC BRD EDGE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 91889 pcs | Data sheet | DX07 Series DatasheetDX07B024JJ2R1500 Pkg DrawingDX07B024JJ2 Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | 20V |
| Termination | Solder | Specifications | USB 3.1 (USB 3.1 Gen 2, Superspeed+) |
| Shielding | Shielded | Shell/Shielding Material | Steel, Stainless |
| Series | DX07 | Packaging | Tape & Reel (TR) |
| Other Names | 670-2847-2 | Operating Temperature | -30°C ~ 80°C |
| Number of Ports | 1 | Number of Contacts | 24 |
| Mounting Type | Board Edge, Cutout; Surface Mount; Through Hole, Right Angle | Mounting Feature | Horizontal, Mid Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10000 |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | Black |
| Ingress Protection | - | Gender | Receptacle |
| Features | Pick and Place | Detailed Description | USB - C USB 3.1 (USB 3.1 Gen 2, Superspeed+) Receptacle Connector 24 Position Board Edge, Cutout; Surface Mount; Through Hole, Right Angle |
| Current Rating | 0.25A, 1.25A | Contact Finish | Gold |
| Connector Type | USB - C |
