DX07B024JJ3R1600

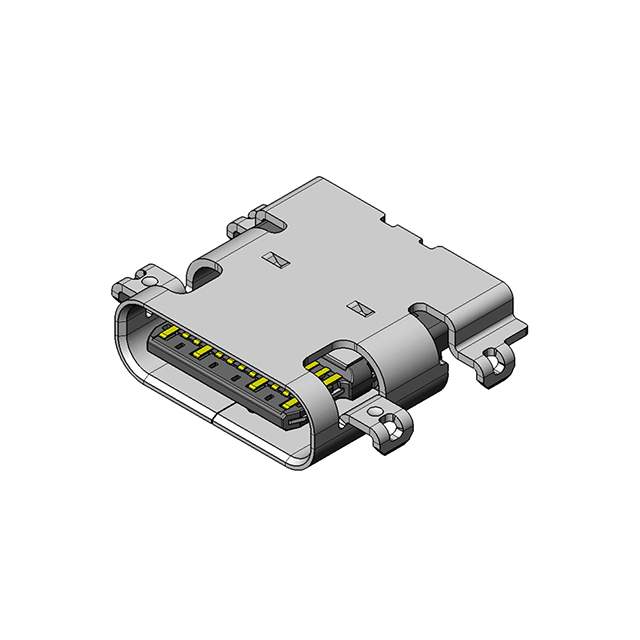

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DX07B024JJ3R1600 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DX07B024JJ3R1600 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DX07B024JJ3R1600 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN REPT USB3.1 TYPE C 24POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.934 | $0.848 | $0.796 | $0.762 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.727 | $0.658 | $0.606 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | DX07B024JJ3R1600 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN REPT USB3.1 TYPE C 24POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 58635 pcs | Data sheet | DX07 Series DatasheetDX07B024JJ3R1600 Pkg DrawingDX07B024JJ3 Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | 20V |
| Termination | Solder | Specifications | USB 3.1 (USB 3.1 Gen 2, Superspeed+) |
| Shielding | Shielded | Shell/Shielding Material | Steel, Stainless |
| Series | DX07 | Packaging | Original-Reel® |
| Other Names | 670-2963-6 | Operating Temperature | -30°C ~ 80°C |
| Number of Ports | 1 | Number of Contacts | 24 |
| Mounting Type | Surface Mount, Right Angle | Mounting Feature | Horizontal, Mid Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10000 |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | Black |
| Ingress Protection | - | Gender | Receptacle |
| Features | - | Detailed Description | USB - C USB 3.1 (USB 3.1 Gen 2, Superspeed+) Receptacle Connector 24 Position Surface Mount, Right Angle |
| Current Rating | 0.25A, 1.25A | Contact Finish | Gold |
| Connector Type | USB - C |
