IRFH4201TRPBF

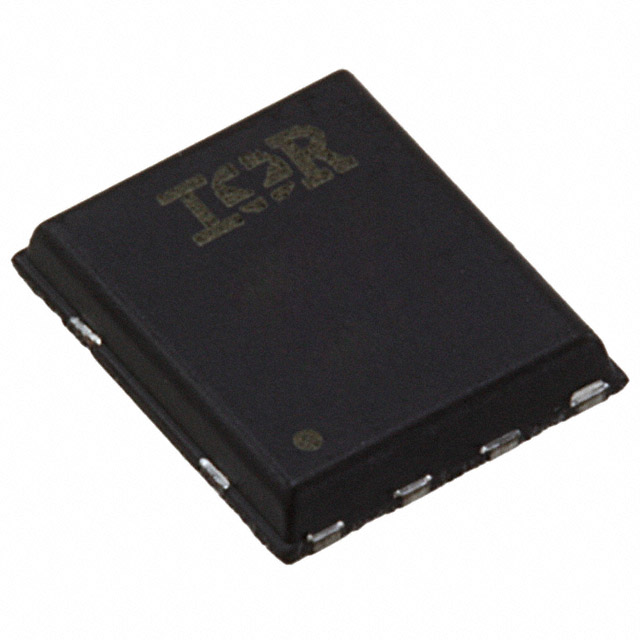

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IRFH4201TRPBF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IRFH4201TRPBF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IRFH4201TRPBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET N-CH 25V 49A 8PQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IRFH4201TRPBF | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | MOSFET N-CH 25V 49A 8PQFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5156 pcs | Data sheet | IRFH4201PbF |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.1V @ 150µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 8-PQFN (5x6) | Series | HEXFET® |
| Rds On (Max) @ Id, Vgs | 0.95 mOhm @ 50A, 10V | Power Dissipation (Max) | 3.5W (Ta), 156W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | 8-PowerVDFN |
| Other Names | IRFH4201TRPBFTR SP001551886 |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 6100pF @ 13V |
| Gate Charge (Qg) (Max) @ Vgs | 94nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 25V | Detailed Description | N-Channel 25V 49A (Ta) 3.5W (Ta), 156W (Tc) Surface Mount 8-PQFN (5x6) |
| Current - Continuous Drain (Id) @ 25°C | 49A (Ta) |
