IRFH3707TR2PBF

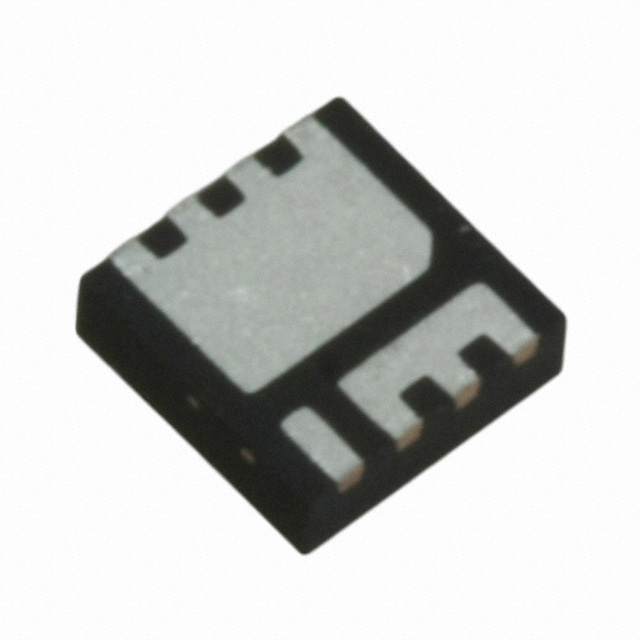

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IRFH3707TR2PBF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IRFH3707TR2PBF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IRFH3707TR2PBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET N-CH 30V 12A PQFN33 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IRFH3707TR2PBF | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | MOSFET N-CH 30V 12A PQFN33 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5277 pcs | Data sheet | IRFH3707PBF |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.35V @ 25µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 8-PQFN (3x3) | Series | HEXFET® |
| Rds On (Max) @ Id, Vgs | 12.4 mOhm @ 12A, 10V | Power Dissipation (Max) | 2.8W (Ta) |
| Packaging | Cut Tape (CT) | Package / Case | 8-PowerVDFN |
| Other Names | IRFH3707TR2PBFCT | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 755pF @ 15V |
| Gate Charge (Qg) (Max) @ Vgs | 8.1nC @ 4.5V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 30V | Detailed Description | N-Channel 30V 12A (Ta), 29A (Tc) 2.8W (Ta) Surface Mount 8-PQFN (3x3) |
| Current - Continuous Drain (Id) @ 25°C | 12A (Ta), 29A (Tc) |
