IXTV280N055T

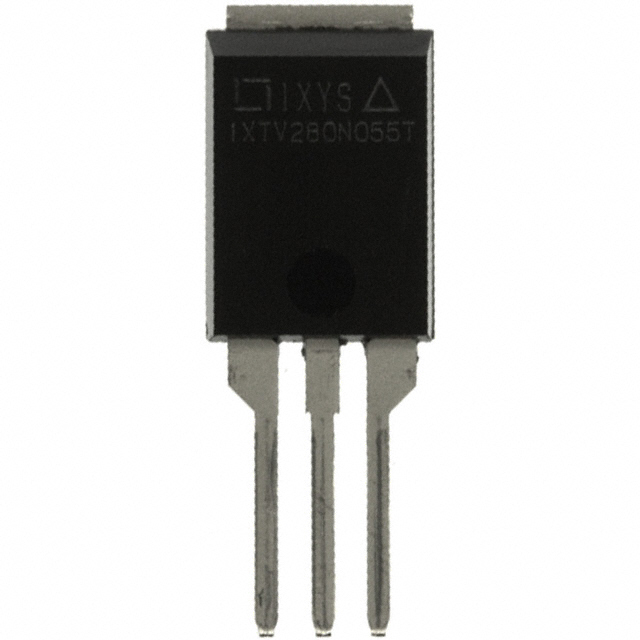

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IXTV280N055T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IXTV280N055T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IXTV280N055T |
|---|---|
| Manufacturer | IXYS Corporation |
| Description | MOSFET N-CH 55V 280A PLUS220 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IXTV280N055T | Manufacturer | IXYS Corporation |
|---|---|---|---|
| Description | MOSFET N-CH 55V 280A PLUS220 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4668 pcs | Data sheet | IXTV280N055T(S) |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PLUS220 | Series | TrenchMV™ |
| Rds On (Max) @ Id, Vgs | 3.2 mOhm @ 50A, 10V | Power Dissipation (Max) | 550W (Tc) |
| Packaging | Tube | Package / Case | TO-220-3, Short Tab |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 9800pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 200nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 55V |
| Detailed Description | N-Channel 55V 280A (Tc) 550W (Tc) Through Hole PLUS220 | Current - Continuous Drain (Id) @ 25°C | 280A (Tc) |
