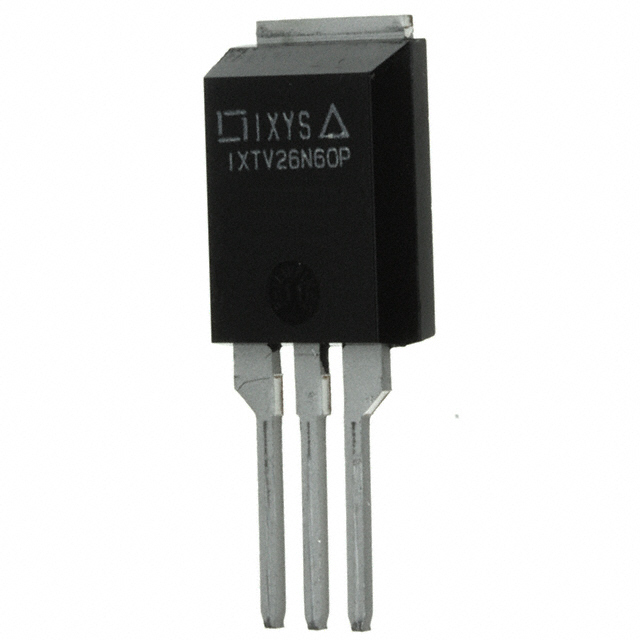

IXTV26N60P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IXTV26N60P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IXTV26N60P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IXTV26N60P |
|---|---|
| Manufacturer | IXYS Corporation |
| Description | MOSFET N-CH 600V 26A PLUS220 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IXTV26N60P | Manufacturer | IXYS Corporation |
|---|---|---|---|
| Description | MOSFET N-CH 600V 26A PLUS220 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4985 pcs | Data sheet | IXT(H,Q,T,V)26N60P(S) |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 5V @ 250µA |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PLUS220 | Series | PolarHV™ |
| Rds On (Max) @ Id, Vgs | 270 mOhm @ 500mA, 10V | Power Dissipation (Max) | 460W (Tc) |
| Packaging | Tube | Package / Case | TO-220-3, Short Tab |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 4150pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 72nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 600V |
| Detailed Description | N-Channel 600V 26A (Tc) 460W (Tc) Through Hole PLUS220 | Current - Continuous Drain (Id) @ 25°C | 26A (Tc) |
