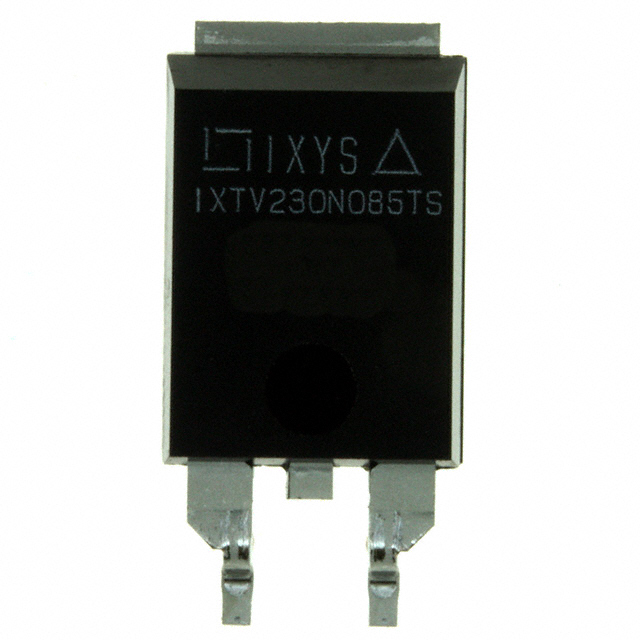

IXTV230N085TS
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IXTV230N085TS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IXTV230N085TS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IXTV230N085TS |
|---|---|
| Manufacturer | IXYS Corporation |
| Description | MOSFET N-CH 85V 230A PLUS220SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IXTV230N085TS | Manufacturer | IXYS Corporation |
|---|---|---|---|
| Description | MOSFET N-CH 85V 230A PLUS220SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4570 pcs | Data sheet | IXTV230N085T(S) |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PLUS-220SMD | Series | TrenchMV™ |
| Rds On (Max) @ Id, Vgs | 4.4 mOhm @ 50A, 10V | Power Dissipation (Max) | 550W (Tc) |
| Packaging | Tube | Package / Case | PLUS-220SMD |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 9900pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 187nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 85V |
| Detailed Description | N-Channel 85V 230A (Tc) 550W (Tc) Surface Mount PLUS-220SMD | Current - Continuous Drain (Id) @ 25°C | 230A (Tc) |
