Home > Products > Discrete Semiconductor Products > Transistors - IGBTs - Single > IXER35N120D1

IXER35N120D1

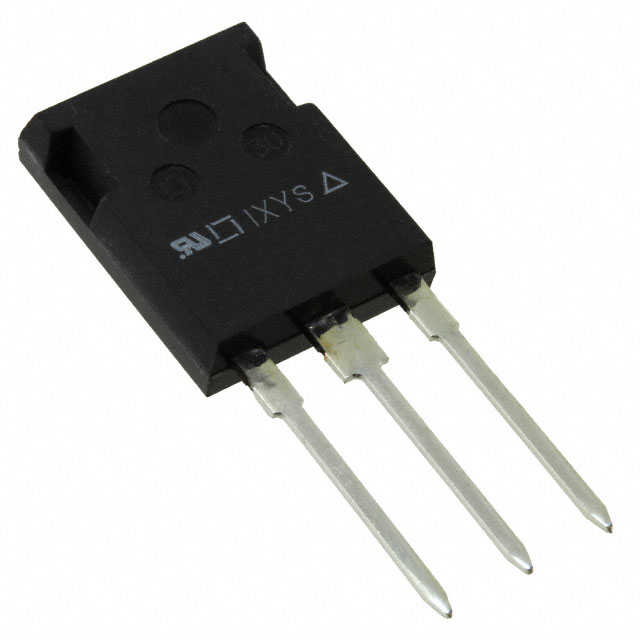

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IXER35N120D1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	IXER35N120D1
Manufacturer	IXYS Corporation
Description	IGBT 1200V 50A 200W TO247
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5014 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	IXER35N120D1	Manufacturer	IXYS Corporation
Description	IGBT 1200V 50A 200W TO247	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5014 pcs	Data sheet	IXER35N120D1
Category	Discrete Semiconductor Products	Voltage - Collector Emitter Breakdown (Max)	1200V
Vce(on) (Max) @ Vge, Ic	2.8V @ 15V, 35A	Test Condition	600V, 35A, 39 Ohm, 15V
Td (on/off) @ 25°C	-	Switching Energy	5.4mJ (on), 2.6mJ (off)
Supplier Device Package	ISOPLUS247™	Series	-
Reverse Recovery Time (trr)	80ns	Power - Max	200W
Packaging	Bulk	Package / Case	ISOPLUS247™
Other Names	Q1370333	Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	Standard	IGBT Type	NPT
Gate Charge	150nC	Detailed Description	IGBT NPT 1200V 50A 200W Through Hole ISOPLUS247™
Current - Collector (Ic) (Max)	50A
