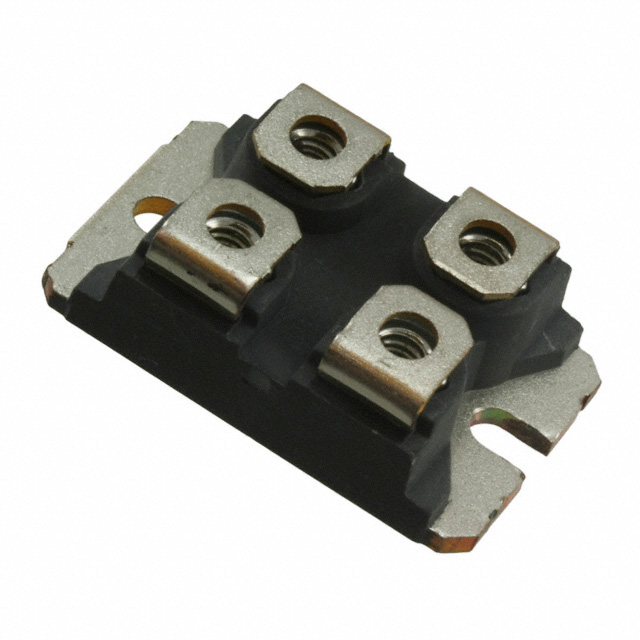

IXEN60N120D1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IXEN60N120D1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IXEN60N120D1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IXEN60N120D1 |
|---|---|
| Manufacturer | IXYS Corporation |
| Description | IGBT NPT3 1200V 100A SOT-227B |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IXEN60N120D1 | Manufacturer | IXYS Corporation |
|---|---|---|---|
| Description | IGBT NPT3 1200V 100A SOT-227B | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5901 pcs | Data sheet | IXEN60N120(D1) |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 60A | Supplier Device Package | SOT-227B |
| Series | - | Power - Max | 445W |
| Package / Case | SOT-227-4, miniBLOC | Operating Temperature | -40°C ~ 150°C (TJ) |
| NTC Thermistor | No | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Cies) @ Vce | 3.8nF @ 25V | Input | Standard |
| IGBT Type | NPT | Detailed Description | IGBT Module NPT Single 1200V 100A 445W Chassis Mount SOT-227B |
| Current - Collector Cutoff (Max) | 800µA | Current - Collector (Ic) (Max) | 100A |
| Configuration | Single |
