Home > Products > Discrete Semiconductor Products > Transistors - IGBTs - Single > IXBF50N360

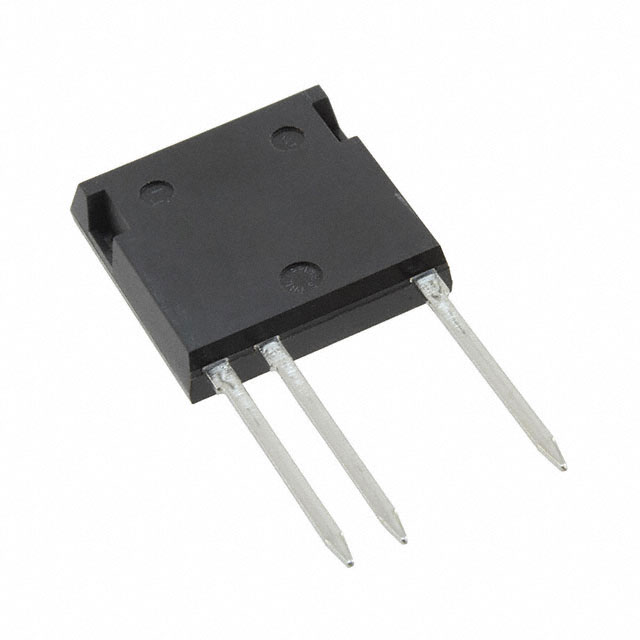

IXBF50N360

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IXBF50N360 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	IXBF50N360
Manufacturer	IXYS Corporation
Description	IGBT 3600V 70A 290W I4-PAK
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2132 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	100 pcs
Reference Price (In US Dollars)	$19.772	$18.608	$17.445	$16.631

Product parameter
Data sheet

Product parameter

Part Number	IXBF50N360	Manufacturer	IXYS Corporation
Description	IGBT 3600V 70A 290W I4-PAK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2132 pcs	Data sheet	IXBF50N360
Category	Discrete Semiconductor Products	Voltage - Collector Emitter Breakdown (Max)	3600V
Vce(on) (Max) @ Vge, Ic	2.9V @ 15V, 50A	Test Condition	960V, 50A, 5 Ohm, 15V
Td (on/off) @ 25°C	46ns/205ns	Switching Energy	-
Supplier Device Package	ISOPLUS i4-PAC™	Series	BIMOSFET™
Reverse Recovery Time (trr)	1.7µs	Power - Max	290W
Packaging	Tube	Package / Case	i4-Pac™-5 (3 Leads)
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	Standard	IGBT Type	-
Gate Charge	210nC	Detailed Description	IGBT 3600V 70A 290W Through Hole ISOPLUS i4-PAC™
Current - Collector Pulsed (Icm)	420A	Current - Collector (Ic) (Max)	70A
