Home > Products > Discrete Semiconductor Products > Transistors - IGBTs - Single > IXBF20N360

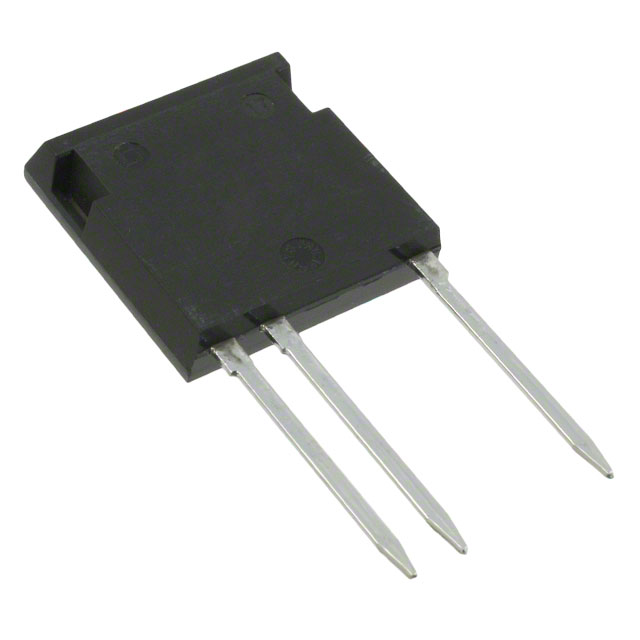

IXBF20N360

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IXBF20N360 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	IXBF20N360
Manufacturer	IXYS Corporation
Description	IGBT 3600V 45A ISOPLUS I4PAK
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2275 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	100 pcs
Reference Price (In US Dollars)	$18.36	$17.168	$15.878	$14.885

Product parameter
Data sheet

Product parameter

Part Number	IXBF20N360	Manufacturer	IXYS Corporation
Description	IGBT 3600V 45A ISOPLUS I4PAK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2275 pcs	Data sheet	IXBF20N360
Category	Discrete Semiconductor Products	Voltage - Collector Emitter Breakdown (Max)	3600V
Vce(on) (Max) @ Vge, Ic	3.4V @ 15V, 20A	Test Condition	1500V, 20A, 10 Ohm, 15V
Td (on/off) @ 25°C	18ns/238ns	Switching Energy	15.5mJ (on), 4.3mJ (off)
Supplier Device Package	ISOPLUS i4-PAC™	Series	BIMOSFET™
Reverse Recovery Time (trr)	1.7µs	Power - Max	230W
Packaging	Tube	Package / Case	i4-Pac™-5
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	26 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	Standard
IGBT Type	-	Gate Charge	43nC
Detailed Description	IGBT 3600V 45A 230W Through Hole ISOPLUS i4-PAC™	Current - Collector Pulsed (Icm)	220A
Current - Collector (Ic) (Max)	45A
