IXBF20N300

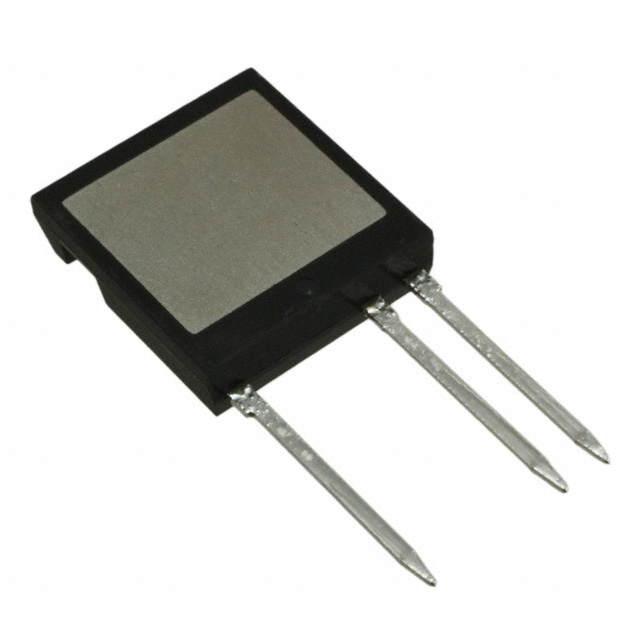

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IXBF20N300 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IXBF20N300 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IXBF20N300 |
|---|---|
| Manufacturer | IXYS Corporation |
| Description | IGBT 3000V 34A 150W ISOPLUSI4 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 50 pcs | ||||
|---|---|---|---|---|---|
| $14.762 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IXBF20N300 | Manufacturer | IXYS Corporation |
|---|---|---|---|
| Description | IGBT 3000V 34A 150W ISOPLUSI4 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2027 pcs | Data sheet | IXBF20N300 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 3000V |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 20A | Test Condition | - |
| Td (on/off) @ 25°C | - | Switching Energy | - |
| Supplier Device Package | ISOPLUS i4-PAC™ | Series | BIMOSFET™ |
| Reverse Recovery Time (trr) | 1.35µs | Power - Max | 150W |
| Packaging | Tube | Package / Case | i4-Pac™-5 (3 Leads) |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 26 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | Standard |
| IGBT Type | - | Gate Charge | 105nC |
| Detailed Description | IGBT 3000V 34A 150W Through Hole ISOPLUS i4-PAC™ | Current - Collector Pulsed (Icm) | 150A |
| Current - Collector (Ic) (Max) | 34A |
