Home > Products > Switches > Snap Action, Limit Switches > BZ-RQ66

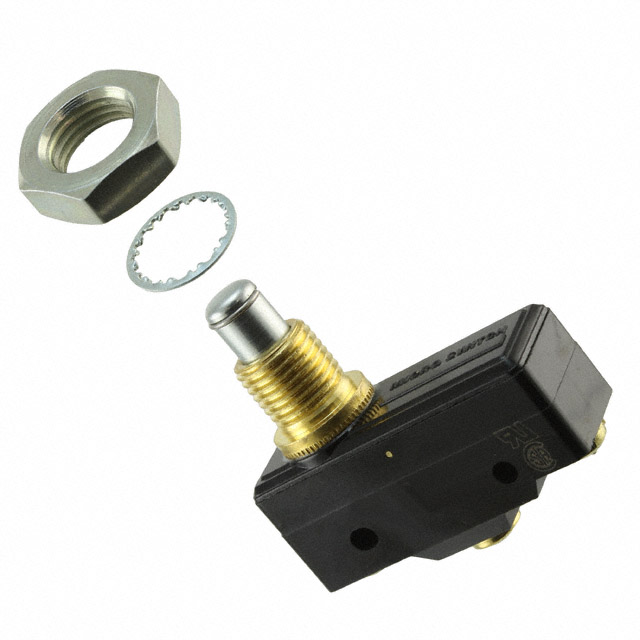

BZ-RQ66

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BZ-RQ66 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BZ-RQ66
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	50 pcs	100 pcs	250 pcs
~~In Stock~~ 3495 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
	$16.055	$12.769	$11.964
	$11.448	$11.002	$10.478

Product parameter
Data sheet

Product parameter

Part Number	BZ-RQ66	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3495 pcs	Data sheet	BZ, BA, BM, BE Series Part Number Guide BZ,BA,BM,6AS,W,Y Series
Category	Switches	Voltage Rating - AC	125V
Termination Style	Screw Terminal	Switch Function	On-Mom
Series	BZ	Release Force	113gf
Pretravel	0.012" (0.3mm)	Packaging	Bulk
Overtravel	0.219" (5.6mm)	Other Names	480-4770 BZ-RQ66-ND BZRQ66
Operating Temperature	-55°C ~ 85°C	Operating Position	1.500" (38.1mm)
Operating Force	170 ~ 269gf	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	20,000,000 Cycles
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	Steel Plunger
Electrical Life	-	Differential Travel	0.0005" (0.013mm)
Current Rating	15A (AC)	Circuit	SPDT
Actuator Type	Overtravel Plunger
