Home > Products > Switches > Snap Action, Limit Switches > BZ-RQX167

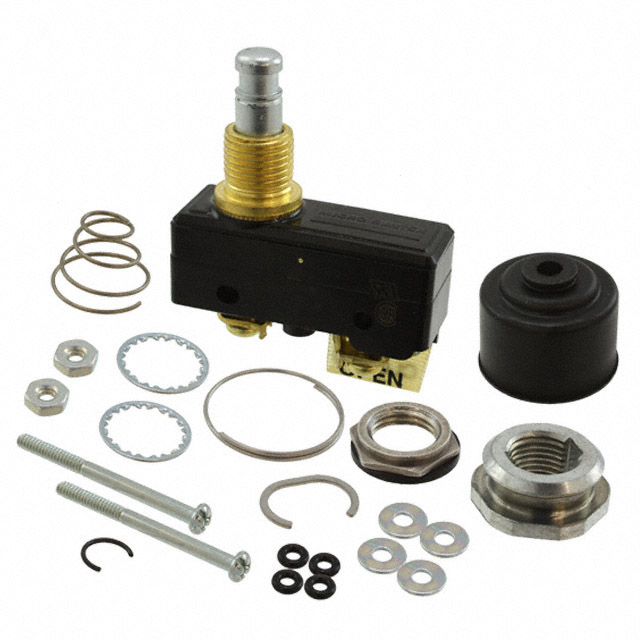

BZ-RQX167

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BZ-RQX167 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BZ-RQX167
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1563 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
Reference Price (In US Dollars)	$26.912	$22.294	$21.333	$20.502	$19.526

Product parameter
Data sheet

Product parameter

Part Number	BZ-RQX167	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1563 pcs	Data sheet	BZ, BA, BM, BE Series Part Number Guide BZ,BA,BM,6AS,W,Y Series
Category	Switches	Voltage Rating - DC	125V
Voltage Rating - AC	125V	Termination Style	Screw Terminal
Switch Function	On-On	Series	BZ
Release Force	-	Pretravel	0.012" (0.3mm)
Packaging	Bulk	Overtravel	0.187" (4.75mm)
Other Names	480-4773 BZ-RQX167-ND BZRQX167	Operating Temperature	-55°C ~ 85°C
Operating Position	1.720" (43.7mm)	Operating Force	170 ~ 269gf
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	20,000,000 Cycles	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	Reset Plunger on Bottom	Electrical Life	-
Differential Travel	-	Current Rating	15A (AC), 500mA (DC)
Circuit	SPDT	Actuator Type	Overtravel Plunger
