Home > Products > Switches > Snap Action, Limit Switches > BZ-RLX

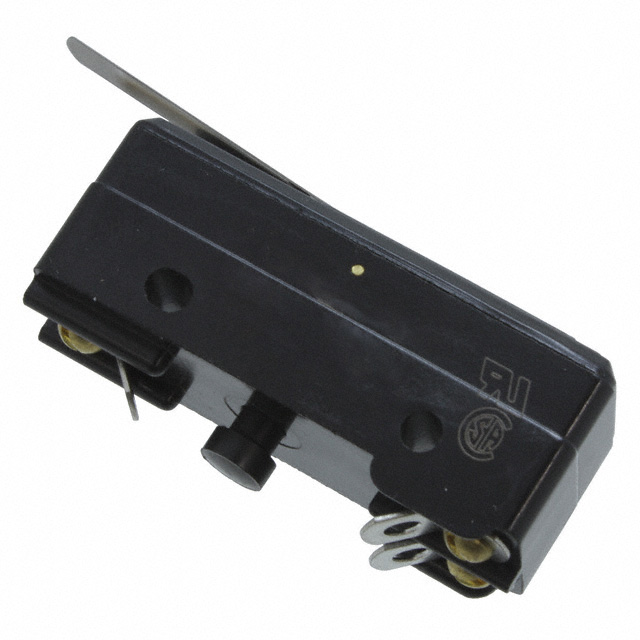

BZ-RLX

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BZ-RLX with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BZ-RLX
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4311 pcs
Reference Price (In US Dollars)	50 pcs
Reference Price (In US Dollars)	$8.473

Product parameter
Data sheet

Product parameter

Part Number	BZ-RLX	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4311 pcs	Data sheet	BZ, BA, BM, BE Series Part Number Guide BZ,BA,BM,6AS,W,Y Series
Category	Switches	Voltage Rating - AC	125V
Termination Style	Solder Lug	Switch Function	On-On
Series	BZ	Release Force	14gf
Pretravel	-	Packaging	Bulk
Overtravel	0.060" (1.5mm)	Other Names	480-5630 BZ-RLX-ND BZRLX
Operating Temperature	-55°C ~ 85°C	Operating Position	0.689" (17.5mm)
Operating Force	85gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	20,000,000 Cycles
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	Reset Plunger on Bottom
Electrical Life	-	Differential Travel	0.030" (0.76mm)
Current Rating	15A (AC)	Circuit	SPDT
Actuator Type	Lever, Leaf
