Home > Products > Switches > Snap Action, Limit Switches > BZ-2AW822T

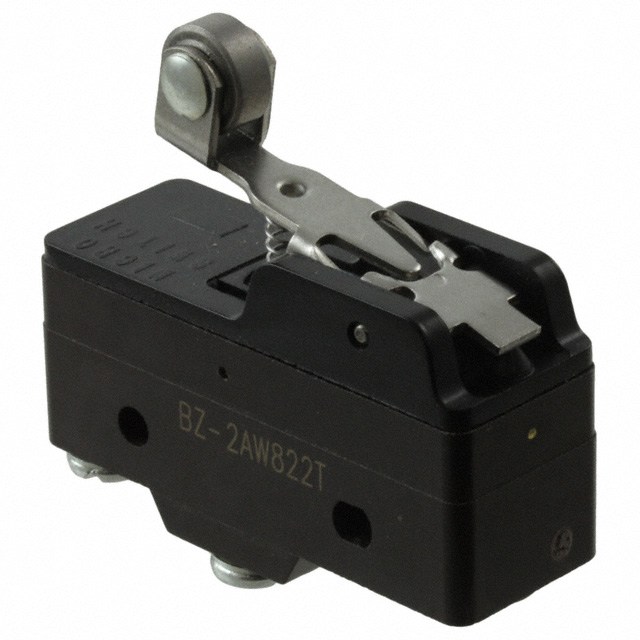

BZ-2AW822T

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BZ-2AW822T with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BZ-2AW822T
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACT SPDT-DB 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 3120 pcs
Reference Price (In US Dollars)	50 pcs
Reference Price (In US Dollars)	$12.098

Product parameter
Data sheet

Product parameter

Part Number	BZ-2AW822T	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACT SPDT-DB 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3120 pcs	Data sheet	BZ, BA, BM, BE Series Part Number Guide BZ,BA,BM,6AS,W,Y Series
Category	Switches	Voltage Rating - DC	125V
Voltage Rating - AC	125V	Termination Style	Screw Terminal
Switch Function	On-Mom	Series	BZ
Release Force	43gf	Pretravel	-
Packaging	Bulk	Overtravel	0.094" (2.4mm)
Other Names	480-4558 BZ-2AW822T-ND BZ2AW822T	Operating Temperature	-55°C ~ 85°C
Operating Position	1.188" (30.2mm)	Operating Force	240gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	20,000,000 Cycles	Manufacturer Standard Lead Time	6 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	-
Differential Travel	0.008" (0.2mm)	Current Rating	15A (AC), 1A (DC)
Circuit	SPDT (DB/DM)	Actuator Type	Lever, Straight
