Home > Products > Switches > Snap Action, Limit Switches > BZ-2AW842444T

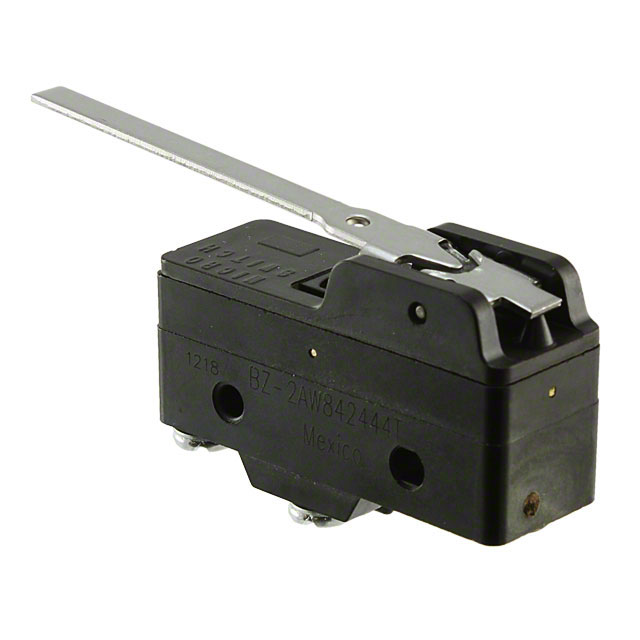

BZ-2AW842444T

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BZ-2AW842444T with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BZ-2AW842444T
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACT SPDT-DB 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2566 pcs
Reference Price (In US Dollars)	50 pcs
Reference Price (In US Dollars)	$14.774

Product parameter
Data sheet

Product parameter

Part Number	BZ-2AW842444T	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACT SPDT-DB 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2566 pcs	Data sheet	BZ, BA, BM, BE Series Part Number Guide BZ,BA,BM,6AS,W,Y Series
Category	Switches	Voltage Rating - DC	125V
Voltage Rating - AC	125V	Termination Style	Screw Terminal
Switch Function	On-Mom	Series	BZ
Release Force	3.500gf	Pretravel	0.328" (8.3mm)
Packaging	Bulk	Overtravel	0.219" (5.6mm)
Other Names	480-4560 BZ-2AW842444T-ND BZ2AW842444T	Operating Temperature	-55°C ~ 85°C
Operating Position	0.750" (19.1mm)	Operating Force	56gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	20,000,000 Cycles	Manufacturer Standard Lead Time	6 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	-
Differential Travel	0.020" (0.5mm)	Current Rating	15A (AC), 1A (DC)
Circuit	SPDT (DB/DM)	Actuator Type	Lever, Straight
