Home > Products > Switches > Snap Action, Limit Switches > BZ-2ADT1

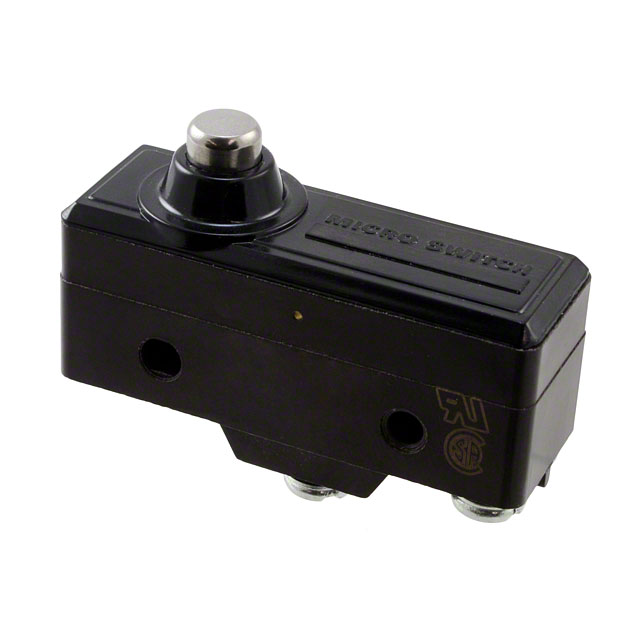

BZ-2ADT1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BZ-2ADT1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BZ-2ADT1
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACT SPDT-DB 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 3889 pcs
Reference Price (In US Dollars)	50 pcs
Reference Price (In US Dollars)	$9.79

Product parameter
Data sheet

Product parameter

Part Number	BZ-2ADT1	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACT SPDT-DB 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3889 pcs	Data sheet	BZ, BA, BM, BE Series Part Number Guide BZ,BA,BM,6AS,W,Y Series
Category	Switches	Voltage Rating - DC	125V
Voltage Rating - AC	125V	Termination Style	Screw Terminal
Switch Function	On-Mom	Series	BZ
Release Force	113gf	Pretravel	0.025" (0.65mm)
Packaging	Bulk	Overtravel	0.060" (1.5mm)
Other Names	480-4553 BZ-2ADT1-ND BZ2ADT1	Operating Temperature	-55°C ~ 85°C
Operating Position	0.865" (22.0mm)	Operating Force	397 ~ 680gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	20,000,000 Cycles	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	-
Differential Travel	0.001" (0.025mm)	Current Rating	15A (AC), 1A (DC)
Circuit	SPDT (DB/DM)	Actuator Type	Round (Pin Plunger)
