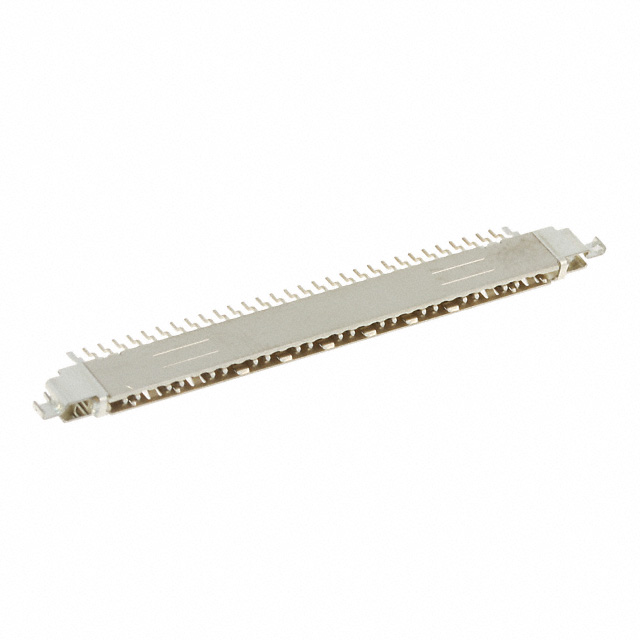

MDF76KBW-30S-1H(55)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MDF76KBW-30S-1H(55) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MDF76KBW-30S-1H(55) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MDF76KBW-30S-1H(55) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN RCPT 30POS 1MM R/A GOLD SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.319 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MDF76KBW-30S-1H(55) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RCPT 30POS 1MM R/A GOLD SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68558 pcs | Data sheet | MDF76 Series |
| Category | Connectors, Interconnects | Voltage Rating | 200VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | MDF76 | Row Spacing - Mating | - |
| Pitch - Mating | 0.039" (1.00mm) | Packaging | Tape & Reel (TR) |
| Other Names | H11696TR MDF76KBW-30S-1H(55)-ND |
Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 30 | Mounting Type | Board Cutout, Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | - | Insulation Color | Beige |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Push-Pull | Detailed Description | 30 Position Receptacle Connector 0.039" (1.00mm) Board Cutout, Surface Mount, Right Angle Gold |
| Current Rating | Varies by Wire Gauge | Contact Type | Center Strip Contact |
| Contact Shape | - | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 12.0µin (0.30µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose |
