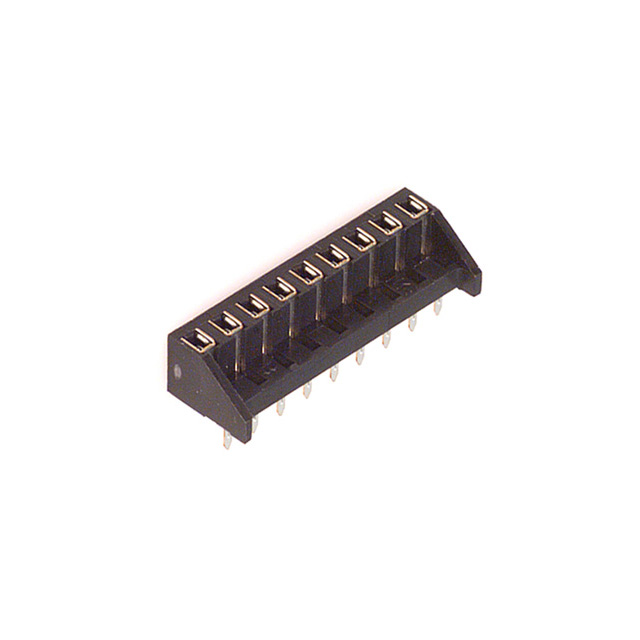

MDF7-9S-2.54DSA(55)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MDF7-9S-2.54DSA(55) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MDF7-9S-2.54DSA(55) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MDF7-9S-2.54DSA(55) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN RECEPT 9POS SINGLE TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.434 | $0.381 | $0.329 | $0.269 | $0.239 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | MDF7-9S-2.54DSA(55) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RECEPT 9POS SINGLE TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 94776 pcs | Data sheet | MDF7 Series |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Board |
| Series | MDF7 | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | *MDF7-9S-2.54DSA(55) H10658 MDF79S254DSA55 |
Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 9 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.197" (5.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 9 Position Receptacle, Bottom Entry Connector 0.100" (2.54mm) Through Hole Tin |
| Current Rating | 3A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.118" (3.00mm) | Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle, Bottom Entry |
| Applications | - |
