Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > MDF7-9P-2.54DSA(55)

MDF7-9P-2.54DSA(55)

MDF7-9P-2.54DSA(55)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MDF7-9P-2.54DSA(55) with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number MDF7-9P-2.54DSA(55)
Manufacturer Hirose
Description CONN HDR 9POS 2.54MM TH
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 89387 pcs
Reference Price
(In US Dollars)		100 pcs
$0.241

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.241

Product parameter

Part Number MDF7-9P-2.54DSA(55) Manufacturer Hirose
Description CONN HDR 9POS 2.54MM TH Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 89387 pcs Data sheet MDF7 Series
Category Connectors, Interconnects Voltage Rating 250V
Termination Solder Style Board to Board
Shrouding Unshrouded Series MDF7
Row Spacing - Mating - Pitch - Mating 0.100" (2.54mm)
Packaging Bulk Overall Contact Length 0.612" (15.54mm)
Other Names 547-0150-8-55 Operating Temperature -35°C ~ 85°C
Number of Rows 1 Number of Positions Loaded All
Number of Positions 9 Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 16 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polybutylene Terephthalate (PBT)
Insulation Height 0.100" (2.54mm) Insulation Color Black
Ingress Protection - Features -
Fastening Type Push-Pull Detailed Description Connector Header Through Hole 9 position 0.100" (2.54mm)
Current Rating 3A Contact Type Male Pin
Contact Shape Square Contact Material Brass
Contact Length - Post 0.118" (3.00mm) Contact Length - Mating 0.394" (10.00mm)
Contact Finish Thickness - Post - Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin Contact Finish - Mating Tin
Connector Type Header Applications -

Related products

MDF7-9S-2.54DSA(55) Image
$0.239/pcsRFQ
MDF7-9S-2.54DSA Image
 RFQ
MDF7-9P-2.54DS(56) Image
$0.389/pcsRFQ
MDF7-8P-2.54DSA(01) Image
$0.534/pcsRFQ
MDF7-9P-2.54DSA(01) Image
$0.595/pcsRFQ
$0.505/pcsRFQ
MDF7-9P-2.54DS(55) Image
$0.316/pcsRFQ
$0.356/pcsRFQ
$0.538/pcsRFQ
$1.503/pcsRFQ
MDF76KBW-30S-1H(55) Image
$0.319/pcsRFQ

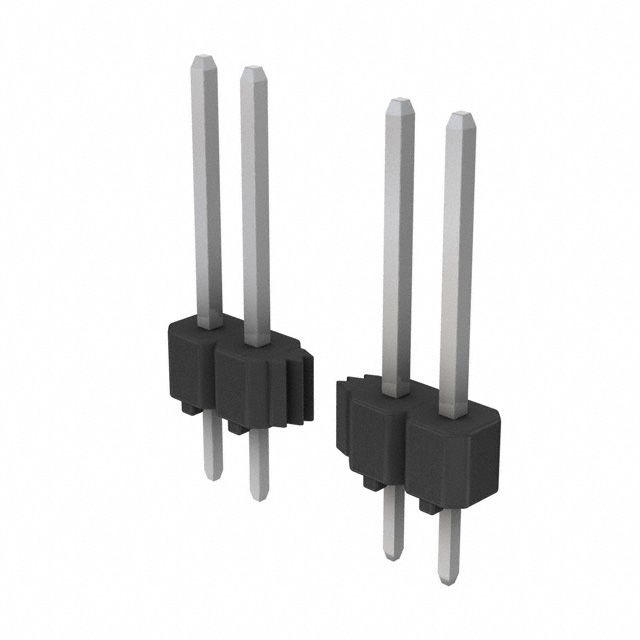

MDF7-8P-2.54DSA(55) Image
