FH23-25S-0.3SHW(05)

FH23-25S-0.3SHW(05)

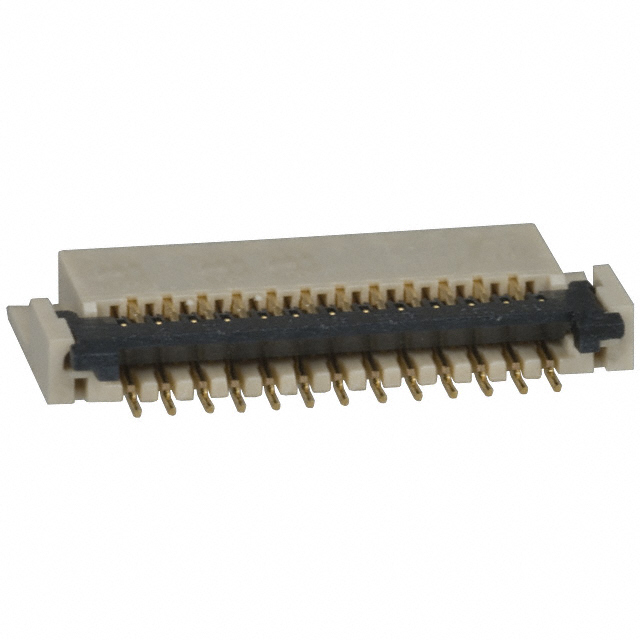

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FH23-25S-0.3SHW(05) with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number FH23-25S-0.3SHW(05)
Manufacturer Hirose
Description CONN FPC BOTTOM 25POS 0.30MM R/A
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 74100 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs25 pcs50 pcs
$0.704$0.639$0.60$0.574
100 pcs250 pcs500 pcs
$0.548$0.496$0.456

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.704

Product parameter

Part Number FH23-25S-0.3SHW(05) Manufacturer Hirose
Description CONN FPC BOTTOM 25POS 0.30MM R/A Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 74100 pcs Data sheet FH23-25S-0.3SHW(05) SpecFH23 Series DatasheetFH23-25S-0.3SHW(05) Drawing
Category Connectors, Interconnects Voltage Rating 30V
Termination Solder Series FH23
Pitch 0.012" (0.30mm) Packaging Original-Reel®
Other Names HFQ425DKR Operating Temperature -55°C ~ 85°C
Number of Positions 25 Mounting Type Surface Mount, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Mating Cycles 10
Material Flammability Rating UL94 V-0 Manufacturer Standard Lead Time 12 Weeks
Locking Feature Flip Lock Lead Free Status / RoHS Status Lead free / RoHS Compliant
Housing Material Liquid Crystal Polymer (LCP), Halogen Free Housing Color Beige
Height Above Board 0.049" (1.25mm) Flat Flex Type FPC
Features Low Insertion Force (LIF) FFC, FCB Thickness 0.20mm
Detailed Description 25 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle Current Rating 0.3A
Contact Material Phosphor Bronze Contact Finish Thickness -
Contact Finish Gold Connector/Contact Type Contacts, Bottom
Cable End Type Tapered Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Color Black
