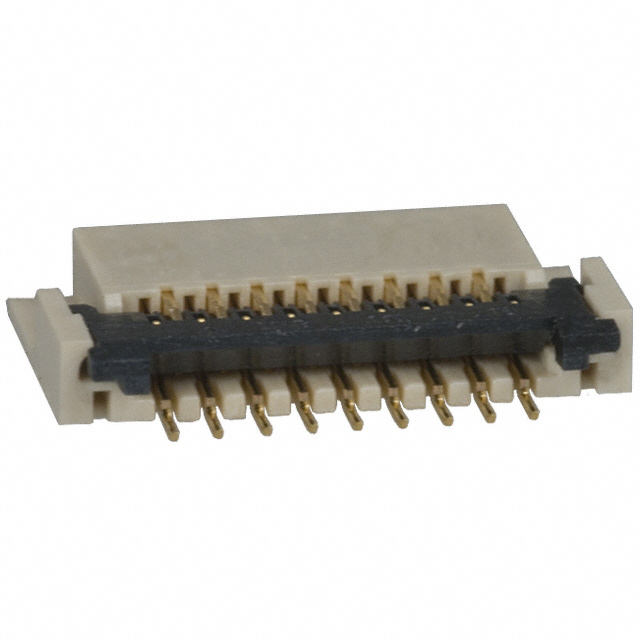

FH23-17S-0.3SHW(05)

FH23-17S-0.3SHW(05)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FH23-17S-0.3SHW(05) with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number FH23-17S-0.3SHW(05)
Manufacturer Hirose
Description CONN FPC BOTTOM 17POS 0.30MM R/A
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 80456 pcs
Reference Price
(In US Dollars)		2500 pcs
$0.30

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.30

Product parameter

Part Number FH23-17S-0.3SHW(05) Manufacturer Hirose
Description CONN FPC BOTTOM 17POS 0.30MM R/A Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 80456 pcs Data sheet FH23-17S-0.3SHW(05) DrawingFH23 Series DatasheetFH23-17S-0.3SHW(05) Spec
Category Connectors, Interconnects Voltage Rating 30V
Termination Solder Series FH23
Pitch 0.012" (0.30mm) Packaging Tape & Reel (TR)
Other Names FH2317S03SHW05
HFQ417TR		 Operating Temperature -55°C ~ 85°C
Number of Positions 17 Mounting Type Surface Mount, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Mating Cycles 10
Material Flammability Rating UL94 V-0 Manufacturer Standard Lead Time 12 Weeks
Locking Feature Flip Lock Lead Free Status / RoHS Status Lead free / RoHS Compliant
Housing Material Liquid Crystal Polymer (LCP), Halogen Free Housing Color Beige
Height Above Board 0.049" (1.25mm) Flat Flex Type FPC
Features Low Insertion Force (LIF) FFC, FCB Thickness 0.20mm
Detailed Description 17 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle Current Rating 0.3A
Contact Material Phosphor Bronze Contact Finish Thickness -
Contact Finish Gold Connector/Contact Type Contacts, Bottom
Cable End Type Tapered Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Color Black
