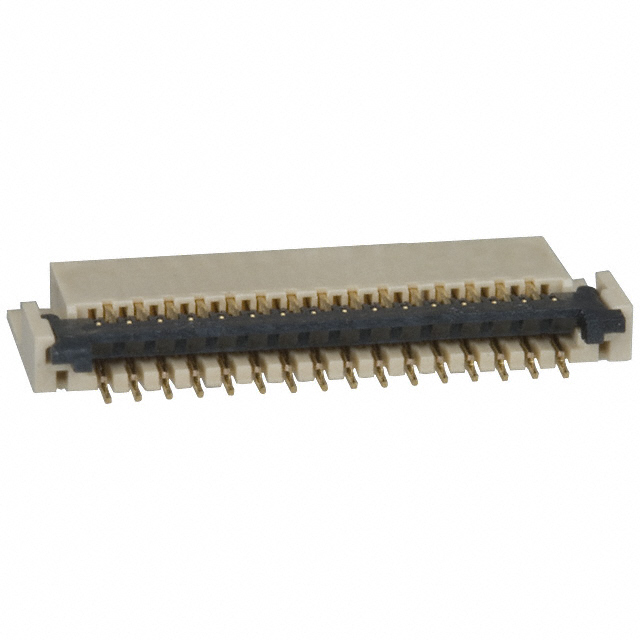

FH23-31S-0.3SHW(05)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FH23-31S-0.3SHW(05) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FH23-31S-0.3SHW(05) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FH23-31S-0.3SHW(05) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN FPC BOTTOM 31POS 0.30MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2500 pcs | ||||
|---|---|---|---|---|---|
| $0.386 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FH23-31S-0.3SHW(05) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FPC BOTTOM 31POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 90605 pcs | Data sheet | FH23-31S-0.3SHAW(05) SpecFH23 Series DatasheetFH23-31S-0.3SHAW(05) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 30V |
| Termination | Solder | Series | FH23 |
| Pitch | 0.012" (0.30mm) | Packaging | Tape & Reel (TR) |
| Operating Temperature | -55°C ~ 85°C | Number of Positions | 31 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 10 | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Locking Feature | Flip Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Housing Color | Beige | Height Above Board | 0.049" (1.25mm) |
| Flat Flex Type | FPC | Features | Low Insertion Force (LIF) |
| FFC, FCB Thickness | 0.20mm | Detailed Description | 31 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle |
| Current Rating | 0.3A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Tapered |
| Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free | Actuator Color | Black |
