M83-LMT1M2N18-0000-000

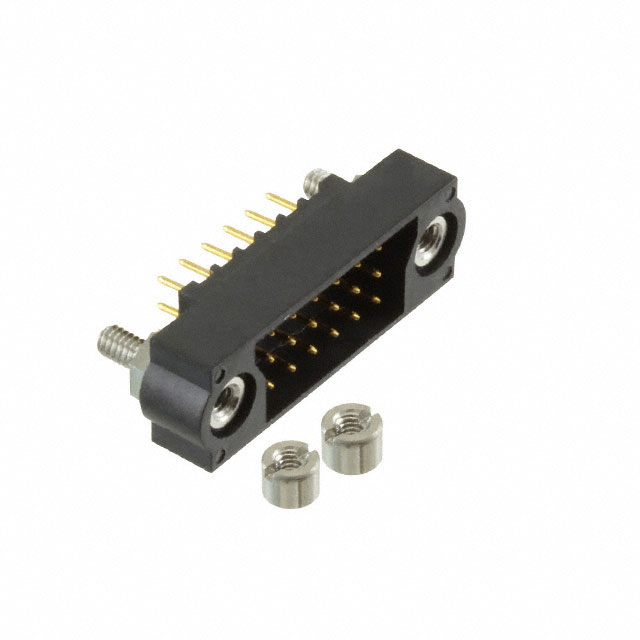

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M83-LMT1M2N18-0000-000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M83-LMT1M2N18-0000-000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M83-LMT1M2N18-0000-000 |
|---|---|
| Manufacturer | Harwin |
| Description | 3 ROW M/T M VERT J/S 18 WAY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 36 pcs | 72 pcs | |
|---|---|---|---|---|---|
| $4.814 | $4.378 | $4.268 | $3.94 | ||
| 108 pcs | 252 pcs | 504 pcs | 1008 pcs | ||
| $3.721 | $3.393 | $3.174 | $2.911 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | M83-LMT1M2N18-0000-000 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 3 ROW M/T M VERT J/S 18 WAY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12189 pcs | Data sheet | M80, M83 Series Spec SheetM83-LMT1M2Nxx-0000-000 DrawingDatamate Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 120V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Datamate J-Tek |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 952-3000 M83-LMT1M2N18-0000-000-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 18 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 10.65mm, 12.85mm | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Insulation Height | 0.240" (6.10mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Mating Flange, Mounting Flange, Mounting Hardware |
| Fastening Type | Threaded | Detailed Description | Connector Header Through Hole 18 position 0.079" (2.00mm) |
| Current Rating | 2.2A per Contact | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
