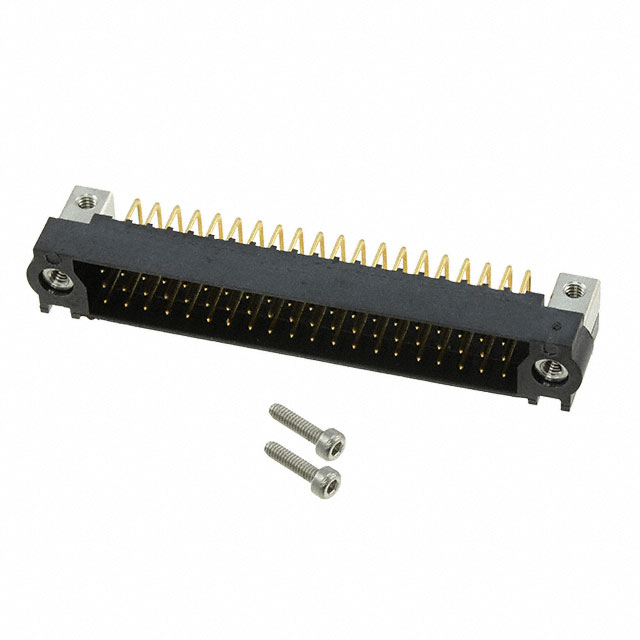

M83-LML3M7N60-0000-000
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M83-LML3M7N60-0000-000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M83-LML3M7N60-0000-000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M83-LML3M7N60-0000-000 |
|---|---|
| Manufacturer | Harwin |
| Description | 3 ROW M/T M HORIZ J/S 60 WAY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 16 pcs | 32 pcs | ||
|---|---|---|---|---|---|
| $11.604 | $10.476 | $10.037 | |||
| 56 pcs | 104 pcs | 256 pcs | |||
| $9.41 | $9.096 | $8.594 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M83-LML3M7N60-0000-000 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 3 ROW M/T M HORIZ J/S 60 WAY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4570 pcs | Data sheet | M80, M83 Series Spec SheetM83-LML3M7Nxx-0000-000 DrawingDatamate Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 800V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Datamate J-Tek |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 952-2599 M83-LML3M7N60-0000-000-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 60 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Insulation Height | 0.303" (7.70mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Mating Flange, Mounting Flange, Mounting Hardware |
| Fastening Type | Threaded | Detailed Description | Connector Header Through Hole, Right Angle 60 position 0.079" (2.00mm) |
| Current Rating | 2.2A per Contact | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.157" (4.00mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
