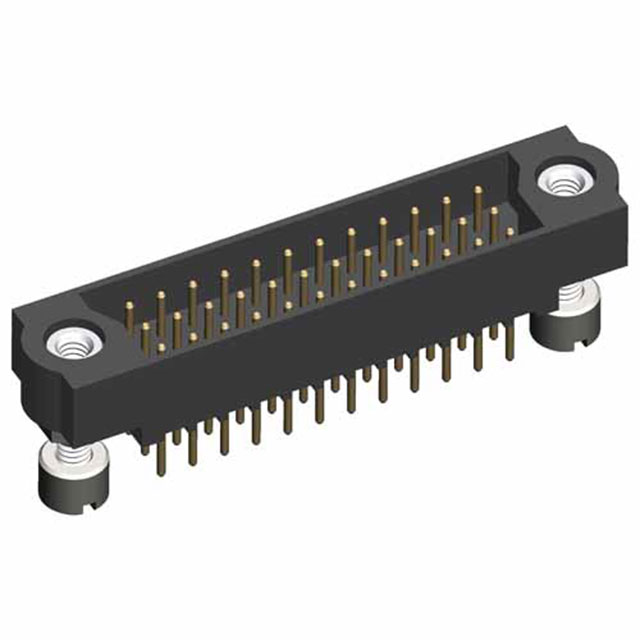

M83-LMT2M3N60-0000-000
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M83-LMT2M3N60-0000-000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M83-LMT2M3N60-0000-000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M83-LMT2M3N60-0000-000 |
|---|---|
| Manufacturer | Harwin |
| Description | 3 ROW MALE VERT 4.5MM PCT W/JS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 12 pcs | 36 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $6.97 | $6.472 | $5.808 | $5.642 | ||
| 108 pcs | 252 pcs | 504 pcs | |||
| $4.979 | $4.647 | $4.547 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M83-LMT2M3N60-0000-000 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 3 ROW MALE VERT 4.5MM PCT W/JS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8161 pcs | Data sheet | M80, M83 Series Spec SheetM83-LMT2M3Nxx-0000-000 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 120V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Datamate J-Tek |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 952-3570 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 60 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled | Insulation Height | 0.238" (6.05mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Mating Flange, Mounting Flange, Mounting Hardware | Fastening Type | Threaded |
| Detailed Description | Connector Header Through Hole 60 position 0.079" (2.00mm) | Current Rating | 2.2A per Contact |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.173" (4.40mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
