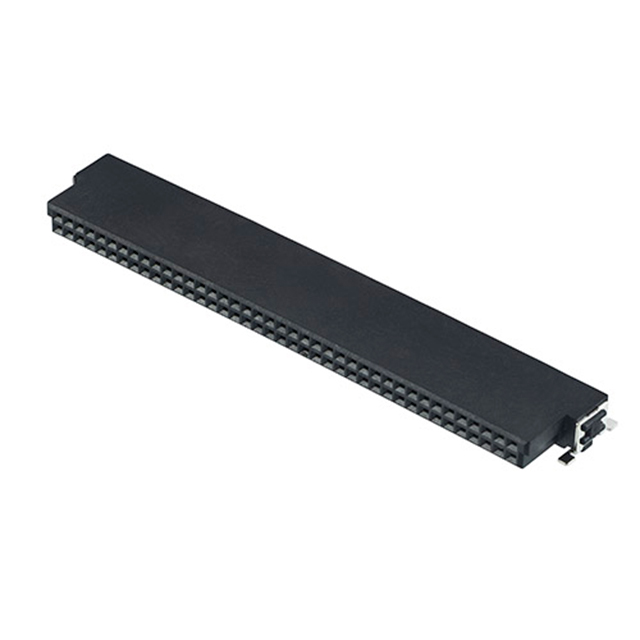

M55-6108042R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M55-6108042R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M55-6108042R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M55-6108042R |
|---|---|
| Manufacturer | Harwin |
| Description | CONN RCPT 1.27MM SMD R/A 80POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 700 pcs | 1400 pcs | 2100 pcs | 3500 pcs | |
|---|---|---|---|---|---|
| $1.307 | $1.115 | $1.076 | $1.038 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | M55-6108042R | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN RCPT 1.27MM SMD R/A 80POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32018 pcs | Data sheet | M55-610xx42R Catalog PageM55 Series Spec SheetArcher Kontrol New Product IntroM55-610xx42R Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 100VAC |
| Termination | Solder | Style | Board to Board |
| Series | Archer Kontrol | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tape & Reel (TR) |
| Other Names | 952-3866-2 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 80 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.146" (3.70mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Solder Retention |
| Fastening Type | Latch Holder | Detailed Description | 80 Position Receptacle Connector Surface Mount, Right Angle |
| Current Rating | 1.2A | Contact Type | Female Socket |
| Contact Shape | Rectangular | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 1.00µin (0.025µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | Automotive, General Purpose, Industrial |
