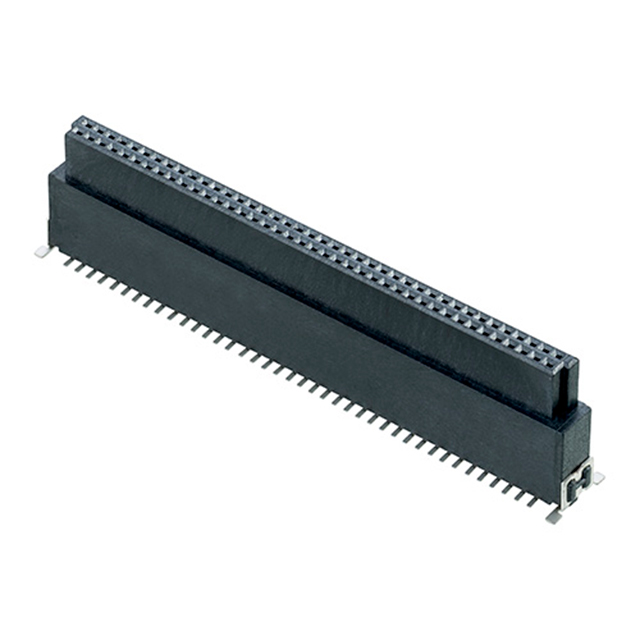

M55-6028042R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M55-6028042R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M55-6028042R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M55-6028042R |
|---|---|
| Manufacturer | Harwin |
| Description | CONN RCPT 1.27MM DUAL SMD 80POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 200 pcs | 400 pcs | 600 pcs | 1000 pcs | 2000 pcs |
|---|---|---|---|---|---|
| $1.237 | $1.083 | $1.052 | $0.897 | $0.866 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | M55-6028042R | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN RCPT 1.27MM DUAL SMD 80POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 43264 pcs | Data sheet | M55-60zzz42R DrawingM55 Series Spec SheetArcher Kontrol New Product Intro |
| Category | Connectors, Interconnects | Voltage Rating | 100VAC |
| Termination | Solder | Style | Board to Board |
| Series | Archer Kontrol | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tape & Reel (TR) |
| Other Names | 952-3858-2 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 80 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 11.1mm, 13.9mm, 18.5mm | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.537" (13.64mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Pick and Place, Solder Retention |
| Fastening Type | Latch Holder | Detailed Description | 80 Position Receptacle Connector Surface Mount |
| Current Rating | 1.2A | Contact Type | Female Socket |
| Contact Shape | Rectangular | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 1.00µin (0.025µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | Automotive, General Purpose, Industrial |
