M55-7002042R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M55-7002042R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M55-7002042R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M55-7002042R |
|---|---|
| Manufacturer | Harwin |

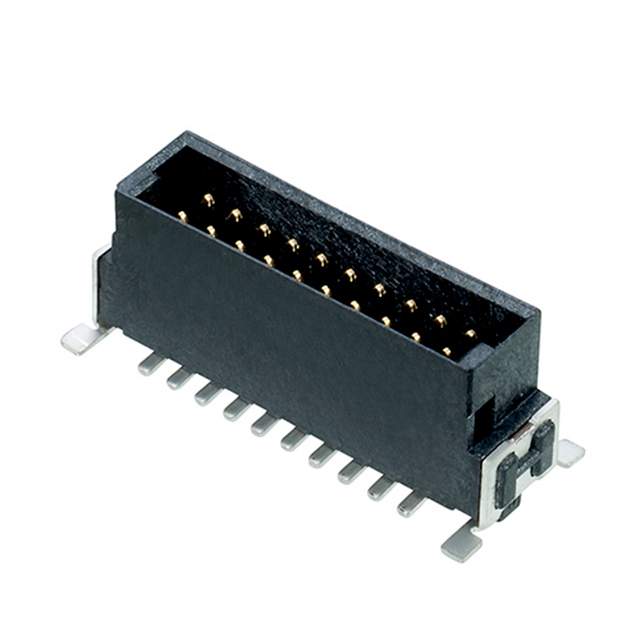

| Description | CONN HDR 1.27MM DUAL SMD 20POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 1500 pcs | ||
|---|---|---|---|---|---|
| $0.265 | $0.235 | $0.221 | |||
| 2500 pcs | 5000 pcs | 12500 pcs | |||
| $0.213 | $0.206 | $0.191 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M55-7002042R | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN HDR 1.27MM DUAL SMD 20POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 120565 pcs | Data sheet | M55 Series Spec SheetArcher Kontrol New Product IntroM55-70zzz42R Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | Archer Kontrol |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 952-3869-2 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 8mm, 10.8mm, 15.4mm | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.266" (6.76mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Pick and Place, Solder Retention |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Surface Mount 20 position 0.050" (1.27mm) |
| Current Rating | 1.2A | Contact Type | Male Pin |
| Contact Shape | Rectangular | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.157" (4.00mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 1.00µin (0.025µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial |
