M30-6000446

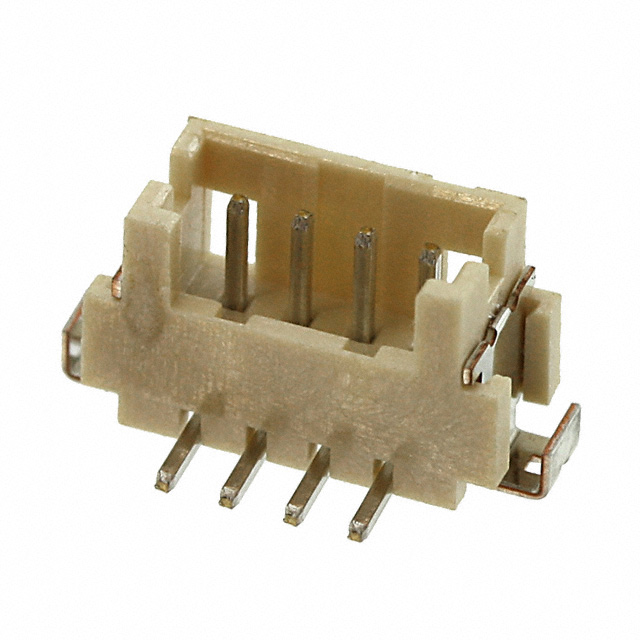

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M30-6000446 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M30-6000446 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M30-6000446 |
|---|---|
| Manufacturer | Harwin |
| Description | 4POS SIL SMT PLUG |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 59 pcs | 118 pcs | ||
|---|---|---|---|---|---|
| $1.113 | $0.934 | $0.889 | |||
| 531 pcs | 1003 pcs | 5015 pcs | |||
| $0.756 | $0.645 | $0.578 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M30-6000446 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 4POS SIL SMT PLUG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 57924 pcs | Data sheet | M30 Series SpecM40, M30 Series CatalogM30-600xx46 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 150V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | M30 |
| Row Spacing - Mating | - | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 952-1966 M306000446 |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 5.9mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
| Insulation Height | 0.189" (4.80mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide, Solder Retention |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Surface Mount 4 position 0.049" (1.25mm) |
| Current Rating | 1A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 80.0µin (2.03µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
