M30-6000346R

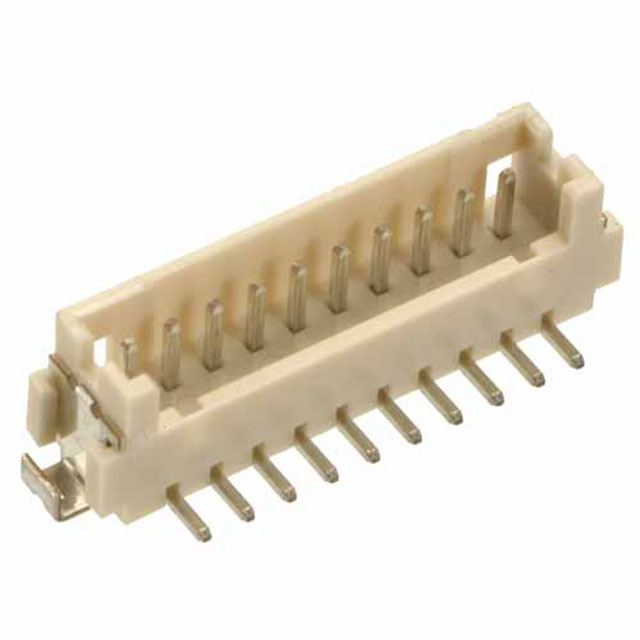

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M30-6000346R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M30-6000346R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M30-6000346R |
|---|---|
| Manufacturer | Harwin |
| Description | CONN HEADER MALE SIL 3WAY SMT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.526 | $0.476 | $0.408 | $0.34 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | M30-6000346R | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN HEADER MALE SIL 3WAY SMT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68054 pcs | Data sheet | M30 Series SpecM30-600xx46R DrawingM40, M30 Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 150V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | M30 |
| Row Spacing - Mating | - | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Original-Reel® | Overall Contact Length | - |
| Other Names | 952-3348-6 | Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Surface Mount |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 5.9mm |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA6T), Nylon 6T | Insulation Height | 0.189" (4.80mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Board Guide, Solder Retention | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Surface Mount 3 position 0.049" (1.25mm) | Current Rating | 1A per Contact |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 80.0µin (2.03µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
