M30-6000246

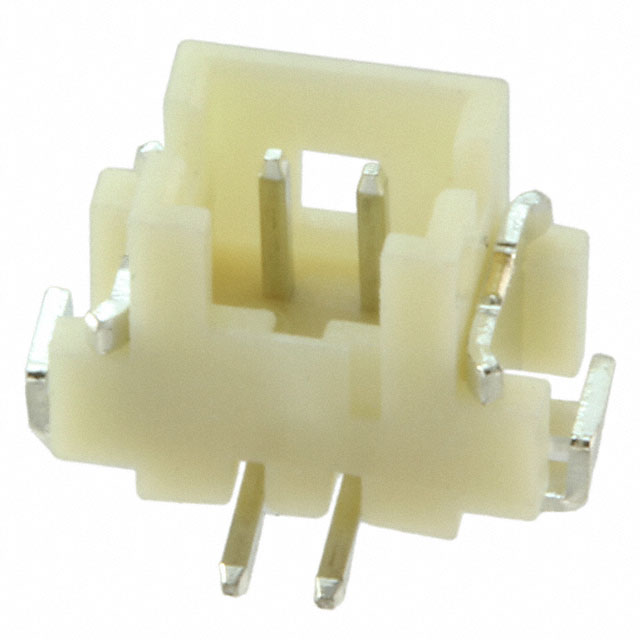

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M30-6000246 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M30-6000246 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M30-6000246 |
|---|---|
| Manufacturer | Harwin |
| Description | 2 SIL SMT PLUG |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.919 | $0.88 | $0.734 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.624 | $0.532 | $0.477 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M30-6000246 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 2 SIL SMT PLUG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 81503 pcs | Data sheet | M30 Series SpecM40, M30 Series CatalogM30-600xx46 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 150V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | M30 |
| Row Spacing - Mating | - | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 952-3031 M30-6000246-ND |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 5.9mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
| Insulation Height | 0.189" (4.80mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide, Solder Retention |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Surface Mount 2 position 0.049" (1.25mm) |
| Current Rating | 1A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 80.0µin (2.03µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
