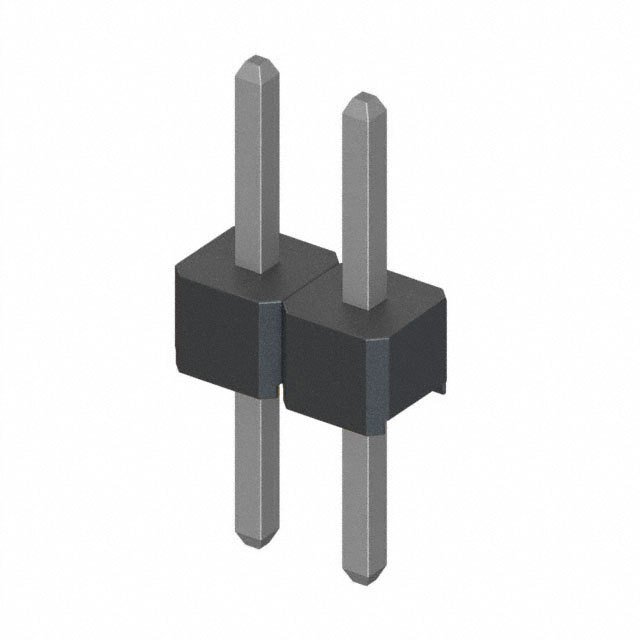

M22-2010246
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M22-2010246 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M22-2010246 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M22-2010246 |
|---|---|
| Manufacturer | Harwin |
| Description | 2 SIL VERT HDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.058 | $0.054 | $0.034 | $0.028 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.024 | $0.021 | $0.02 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M22-2010246 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 2 SIL VERT HDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1141832 pcs | Data sheet | M22 Series CatalogM22-201yyyy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | M22 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | 0.331" (8.40mm) |
| Other Names | 952-3309 M22-2010246-ND |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 5.9mm, 8.6mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
| Insulation Height | 0.059" (1.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 2 position 0.079" (2.00mm) |
| Current Rating | 1A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.134" (3.40mm) | Contact Length - Mating | 0.138" (3.50mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header, Cuttable | Applications | - |
