Home > Products > Connectors, Interconnects > Shunts, Jumpers > M22-1930005

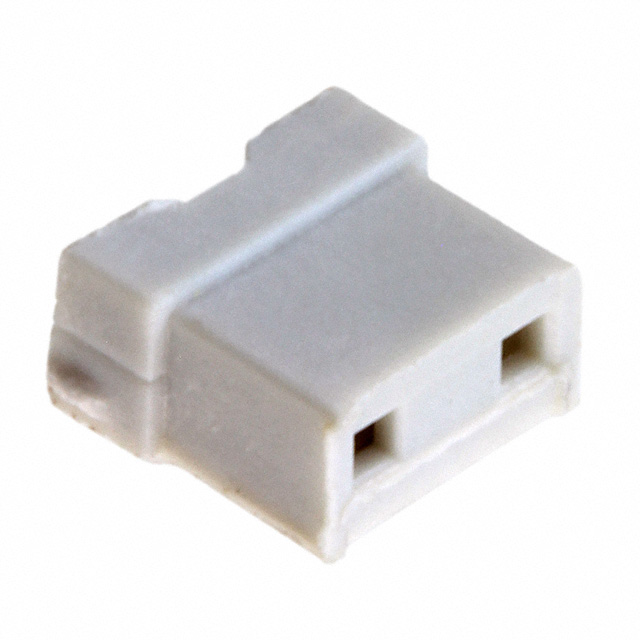

M22-1930005

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M22-1930005 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M22-1930005
Manufacturer	Harwin
Description	OPEN TOP JUMPER SOCKET
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	2500 pcs
~~In Stock~~ 466703 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.117	$0.109	$0.094	$0.08	$0.077
	$0.069	$0.066	$0.055	$0.05

Product parameter
Data sheet

Product parameter

Part Number	M22-1930005	Manufacturer	Harwin
Description	OPEN TOP JUMPER SOCKET	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	466703 pcs	Data sheet	M22 Series Catalog M22-19x Drawing
Category	Connectors, Interconnects	Type	Open Top
Series	M22	Pitch	0.079" (2.00mm)
Packaging	Bulk	Other Names	952-2199 M221930005
Number of Positions or Pins (Grid)	2 (1 x 2)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height	0.138" (3.50mm)	Gender	Female Sockets
Detailed Description	2 (1 x 2) Position Shunt Connector Gray Open Top 0.079" (2.00mm) Gold	Contact Finish Thickness	5.11µin (0.130µm)
Contact Finish	Gold	Color	Gray
