Home > Products > Connectors, Interconnects > Shunts, Jumpers > M22-1930046

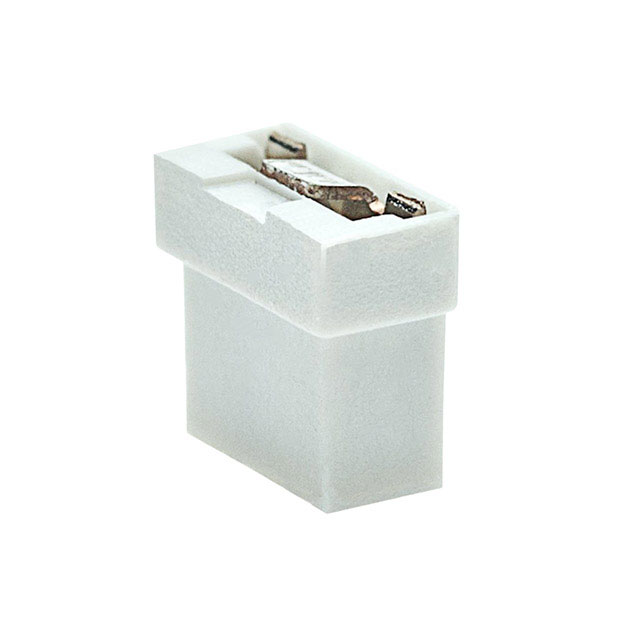

M22-1930046

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M22-1930046 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M22-1930046
Manufacturer	Harwin
Description	CONN SHUNT 2POS OPEN 2MM TIN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 674615 pcs
Reference Price (In US Dollars)	12500 pcs
Reference Price (In US Dollars)	$0.035

Product parameter
Data sheet

Product parameter

Part Number	M22-1930046	Manufacturer	Harwin
Description	CONN SHUNT 2POS OPEN 2MM TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	674615 pcs	Data sheet	M22 Series Catalog M22-19x Drawing
Category	Connectors, Interconnects	Type	Open Top
Series	M22	Pitch	0.079" (2.00mm)
Packaging	Bulk	Number of Positions or Pins (Grid)	2 (1 x 2)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	7 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height	0.138" (3.50mm)
Gender	Female Sockets	Detailed Description	2 (1 x 2) Position Shunt Connector Gray Open Top 0.079" (2.00mm) Tin
Contact Finish Thickness	118.1µin (3.00µm)	Contact Finish	Tin
Color	Gray
