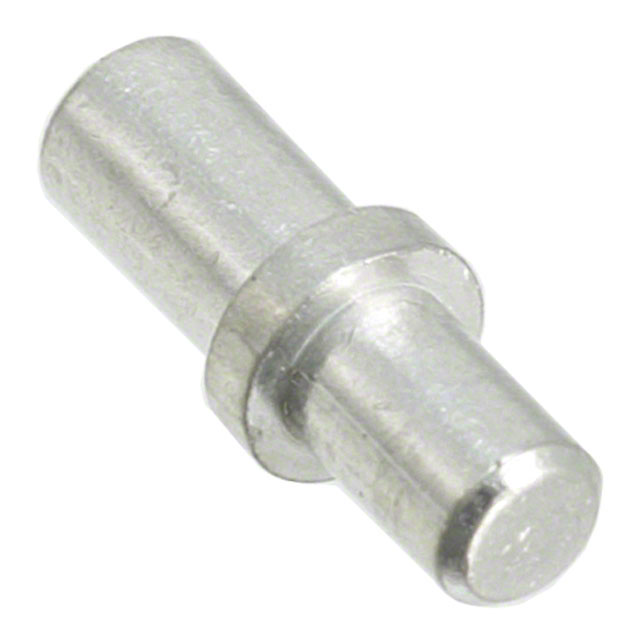

H3163-01
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H3163-01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H3163-01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H3163-01 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN PIN RCPT .035-.041 PRESSFIT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.276 | $0.243 | $0.228 | $0.219 | $0.209 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.19 | $0.171 | $0.152 | $0.138 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | H3163-01 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN PIN RCPT .035-.041 PRESSFIT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 144518 pcs | Data sheet | H3163-xx DrawingPC Sockets Catalog |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.192" (4.88mm) | Series | - |
| Pin Hole Diameter | - | Packaging | Bulk |
| Other Names | 952-2205 H316301 |
Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.086" ~ 0.090" (2.18mm ~ 2.29mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.312" (7.92mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | 3.00N ~ 9.00N |
| Flange Diameter | 0.125" (3.18mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.035" ~ 0.041" (0.89mm ~ 1.05mm) No Tail Press-Fit | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 5.90µin (0.150µm) | Contact Finish | Gold |
| Board Thickness | - | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.035" ~ 0.041" (0.89mm ~ 1.05mm) |
