H3161-46

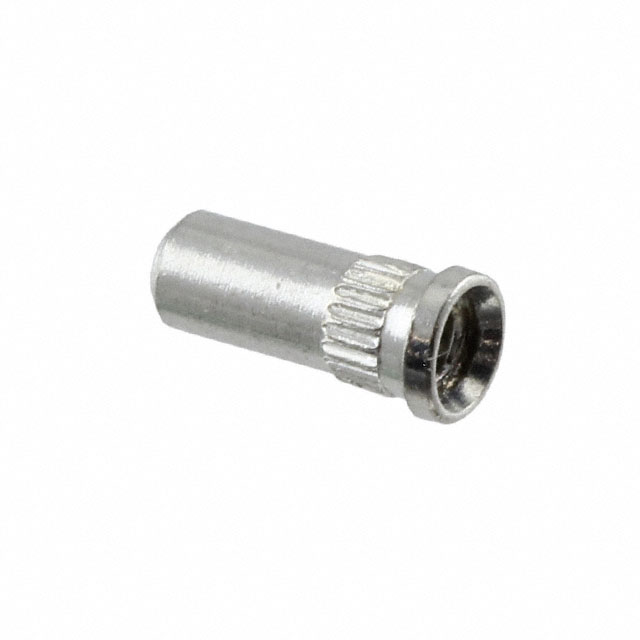

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H3161-46 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H3161-46 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H3161-46 |
|---|---|
| Manufacturer | Harwin |
| Description | 1MM PC BOARD SOCKET |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.099 | $0.092 | $0.078 | $0.069 | $0.064 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.056 | $0.054 | $0.044 | $0.04 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | H3161-46 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 1MM PC BOARD SOCKET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 504598 pcs | Data sheet | H3161 Drawing |
| Category | Connectors, Interconnects | Termination | Press-Fit, Knurled |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.140" (3.56mm) | Series | - |
| Pin Hole Diameter | - | Packaging | Bulk |
| Other Names | 952-3486 | Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.075" ~ 0.077" (1.91mm ~ 1.96mm) | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.207" (5.26mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Force | 3.00N ~ 9.00N | Flange Diameter | 0.092" (2.34mm) |
| Features | - | Detailed Description | Pin Receptacle Connector 0.035" ~ 0.041" (0.89mm ~ 1.05mm) No Tail Press-Fit, Knurled |
| Contact Material | Beryllium Copper | Contact Finish Thickness | 3.00µin (0.076µm) |
| Contact Finish | Tin | Board Thickness | - |
| Accepts Square Pin Size | - | Accepts Pin Diameter | 0.035" ~ 0.041" (0.89mm ~ 1.05mm) |
